Stinson Modular Homes
1 / 5

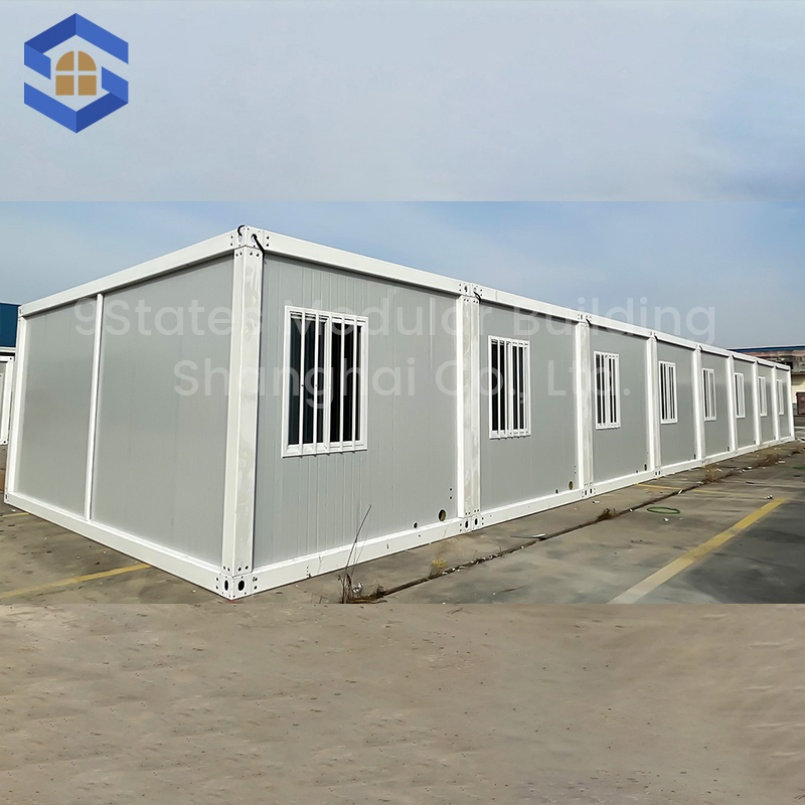

1. Modular and Standardized Design: Main structure uses custom modular units (20-foot/40-foot). Multi-story buildings can be constructed with flexible splicing and stacking.
2. Robust Structure: Q235B steel fully welded frame. Withstands wind forces levels 10-12 and seismic forces levels 6-8. Corrosion-resistant design.

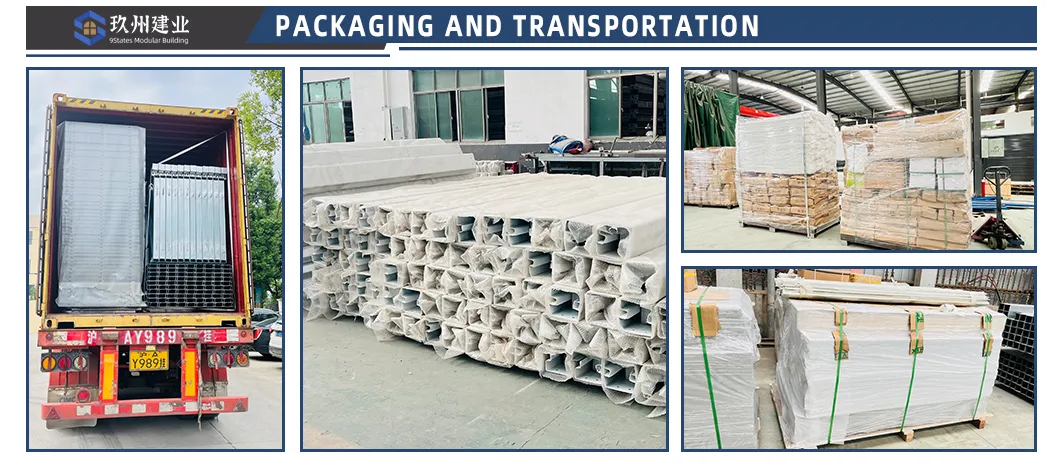

3. High Mobility: Integrated steel unit transportable as a whole by forklift or trailer without disassembly.
4. High Degree of Customization: Interior modifications available for plumbing, electrical, kitchen, and bathroom facilities. Multiple exterior panel options.

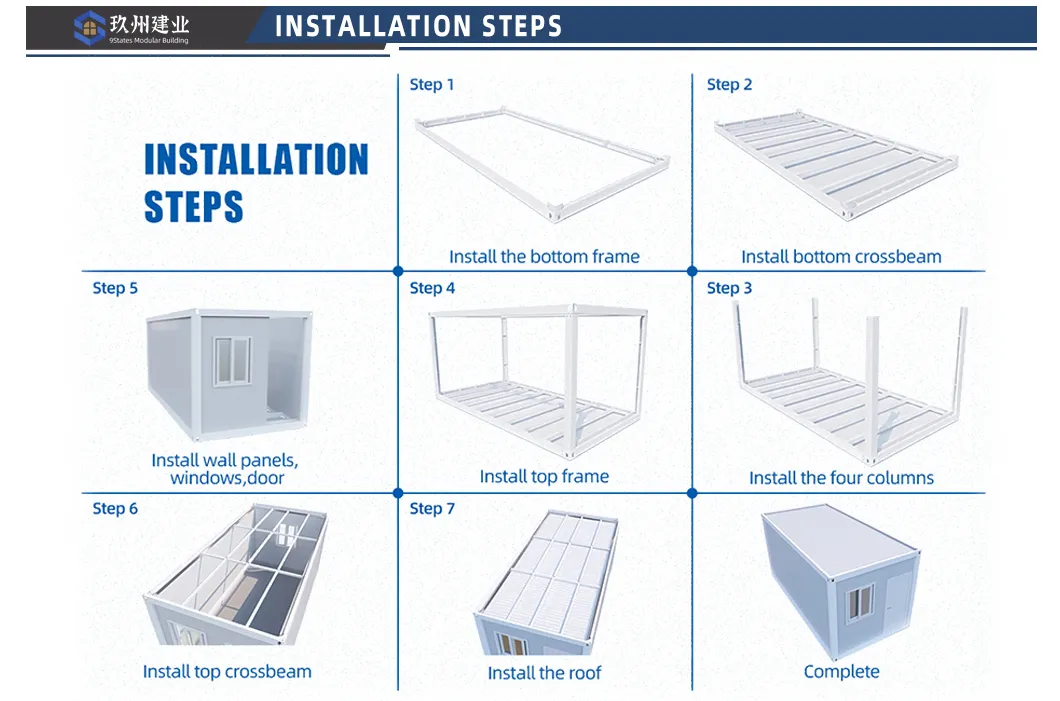

5. Short Construction: 3 people can install a prefabricated modular house in 3 hours, saving 70% of traditional construction time.
1. Residential: Configurable living systems including bedrooms, kitchens, bathrooms, and climate control interfaces.
2. Office: Open-plan or partitioned designs with network interfaces and professional lighting.
3. Commercial: Adaptable for convenience stores, coffee shops, or ticket booths with display window options.
4. Public Support: Suitable for guard booths, rest rooms, and service stations.

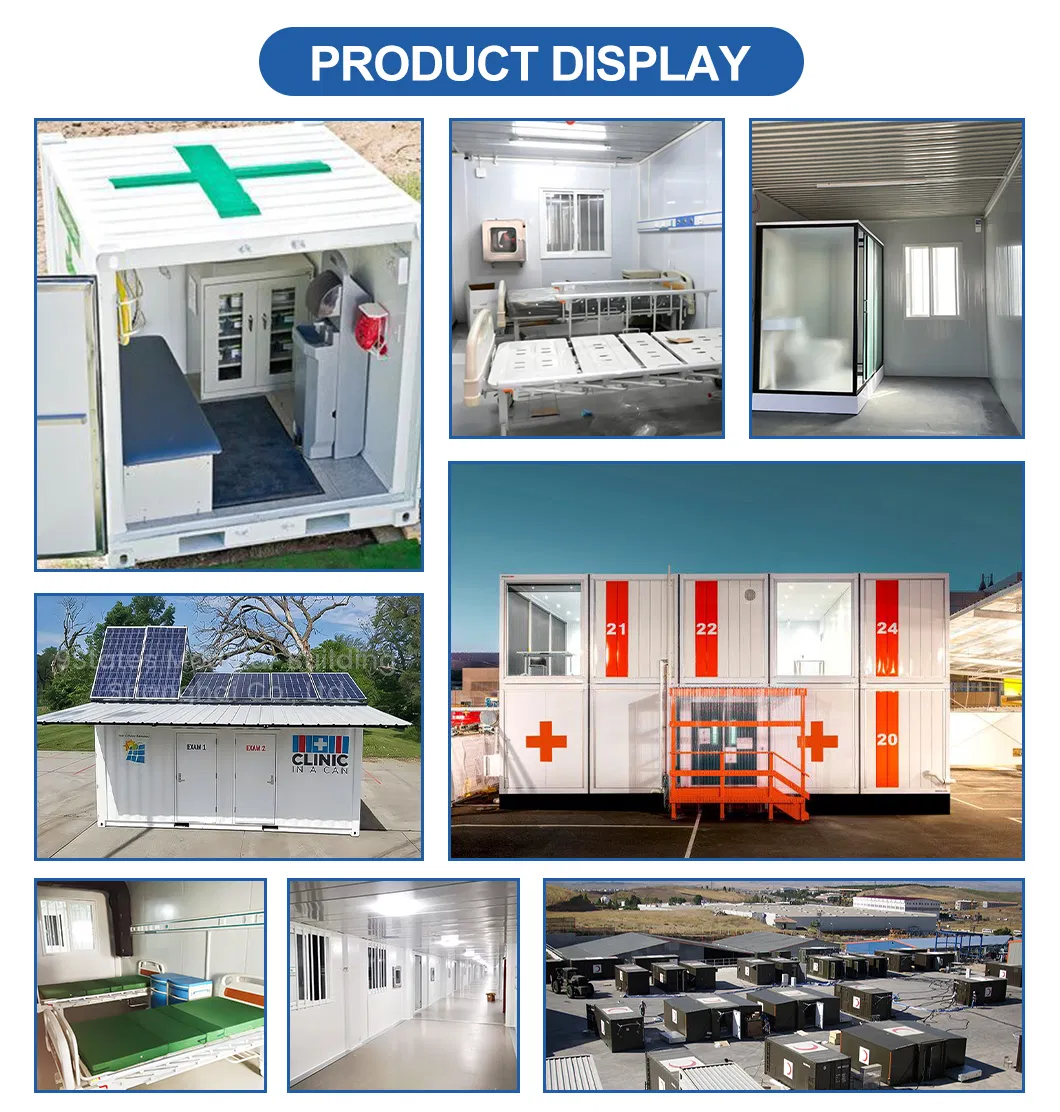

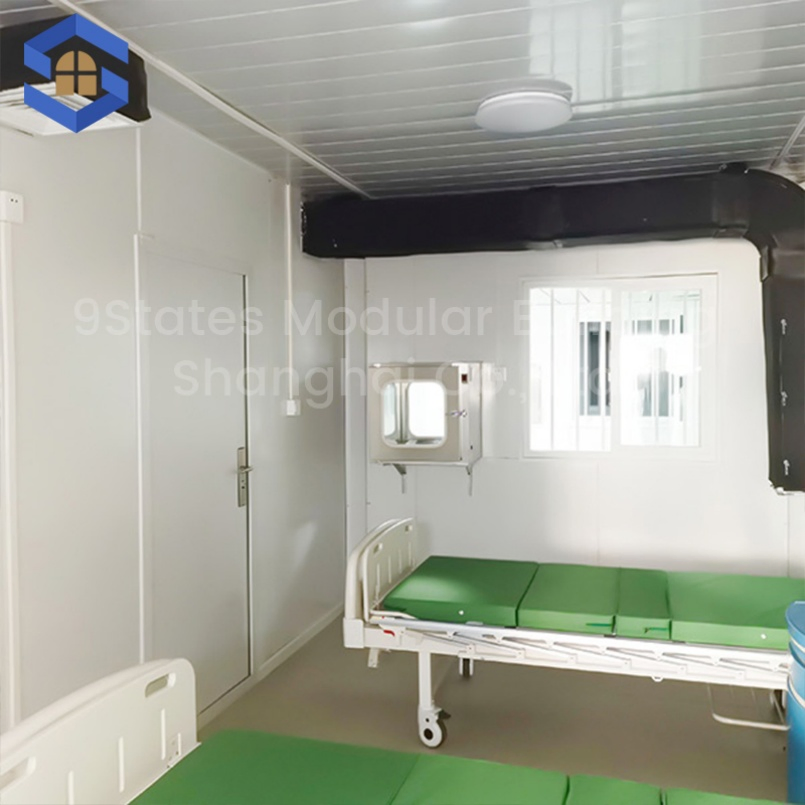

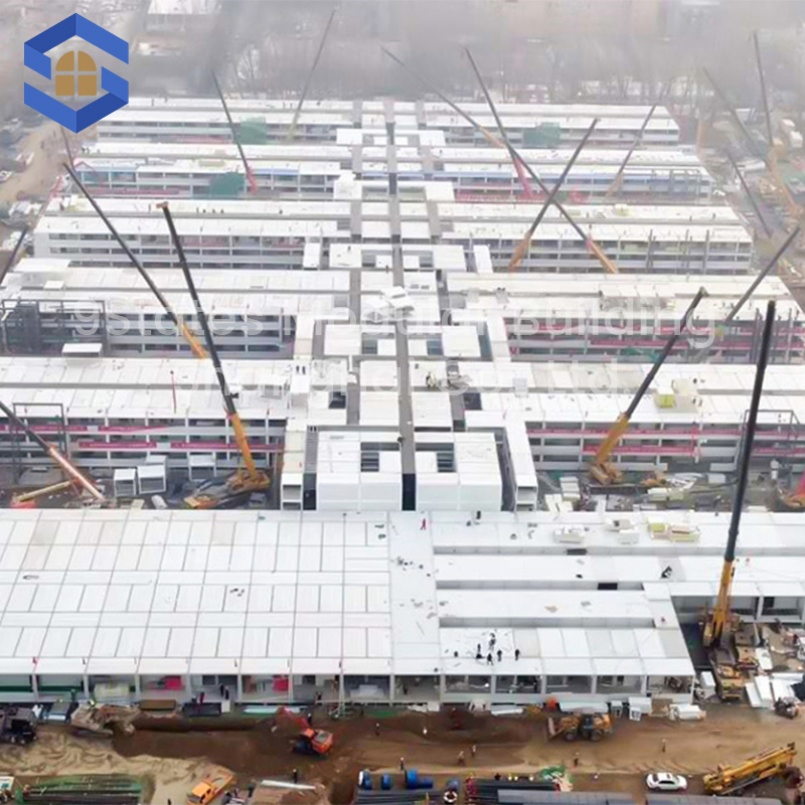

5. Emergency Response: Rapid mass production and deployment for disaster relief or medical isolation points.
| Component | Detailed Description |
|---|---|
| Wall panel | 0.3mm color steel 50mm rock wool sandwich panel |
| Door | Steel door, W840mm x H2035mm, 0.5mm panel, fireproof |
| Window | Upvc sliding window (x2), 5+9+5 hollow double glass with screen and anti-theft Rod |
| Roof | 0.4mm Thickness, 980 Type Color Steel pressure tile |
| Floor | 18mm Grade cement fiberboard + 1.6mm Pvc leather floor |
| Frame | Galvanized roller beams (2.5mm), Columns (210*150mm), and C-type secondary beams |
| Temperature Range | -20°C to 50°C |
| Wind Load | Level 11 |
| Seismic Grade | 7 Degree resistance |
