off-Site Modular Buildings Prefabricated Living Unit 20FT Expandable Containers Portable Cabins

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO.
Customized/6055*2435*2896mm
Fast Installation
Fast Installation
Feature
Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Wind Resistance
Material
Sandwich Panel
Certificate
ISO9001, ISO14001, CE
Size
as Your Requirements
Materials Type
H Beam or I Beam with Q235/Q345
Derusting
Ball Blast
Window
PVC Sliding Window
Doors
Steel Sliding Door/Electric Rolling
Walls
EPS, Rock Wool, PU Sandwich Panel, Color Steel
Roofs
Sandwich Panel+ Decoration Ceiling
Dimensions
According to The Need of Design
Main Material
Steel Frame+Insulation+Decoration
Life Span
Over 30 Years
Wall Permitted Loading
0.6kN/M2
Earthquake-Resistance
Grade 7
Wind-Resistance
Grade 11
HS Code
940600
Production Capacity
500, 000 Set / Year
Product Description
1. Container house brief introduction

Container house is designed and developed according to the standard size of shipping container. Transportation is designed in accordance with a standard ISO shipping container. The corner casting structure enables lifting capability utilizing a crane in the same manner as a standard ISO shipping container.

2. Container house characteristics
  • Good ability to assemble and disassemble for several times without damage.
  • Could be lifted, fixed and combined freely.
  • Heatproof and waterproof.

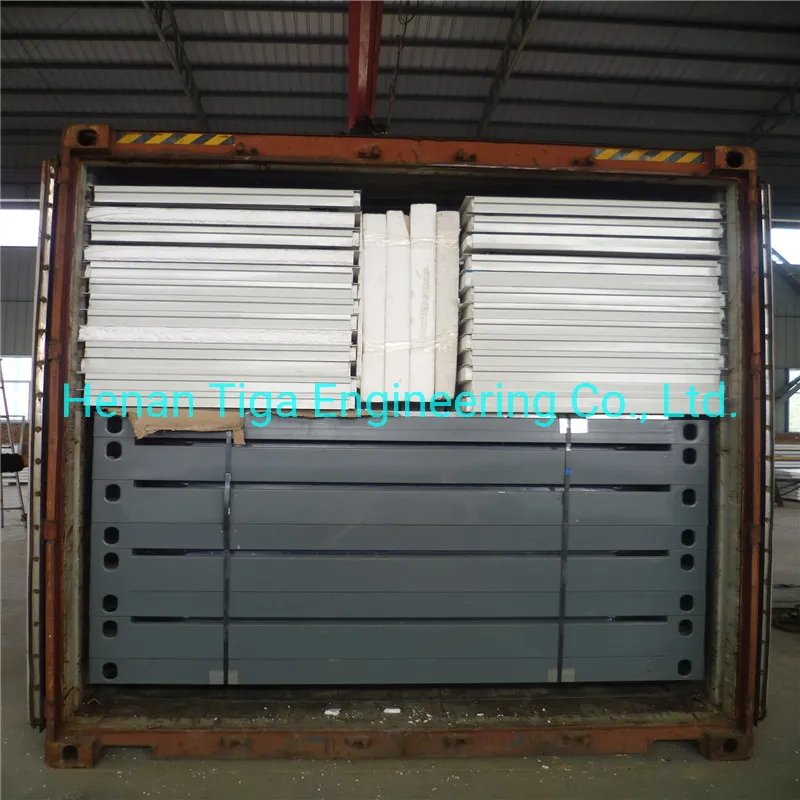

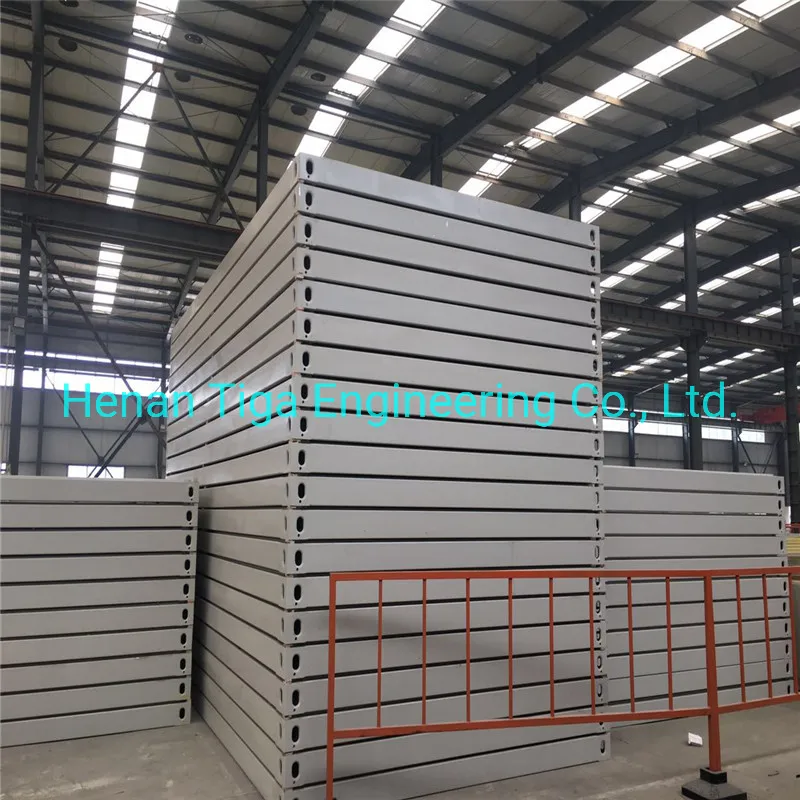

  • Cost saving and convenient transportation (Each 4 container house can be loaded in one standard container).
  • Service life can reach up to 10 - 15 years.
  • We can provide the service of installation, supervision and training by extra.
3. Container house usage

It is of heatproof and waterproof. It is widely used as site office, site living room, meeting room, dormitory, shop, toilet, storage, kitchen, shower room and so on. Light material without overload, easy to pack and transport. The house can be assembled and disassembled more than 6 times, and the service life is about 10-15 years.

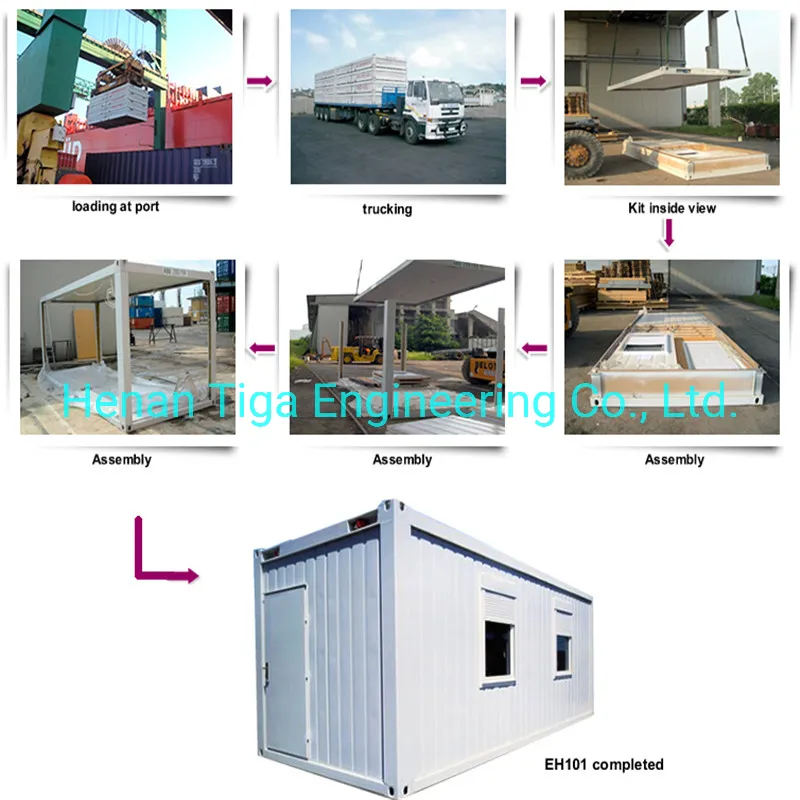

4. Container house main structure and installation

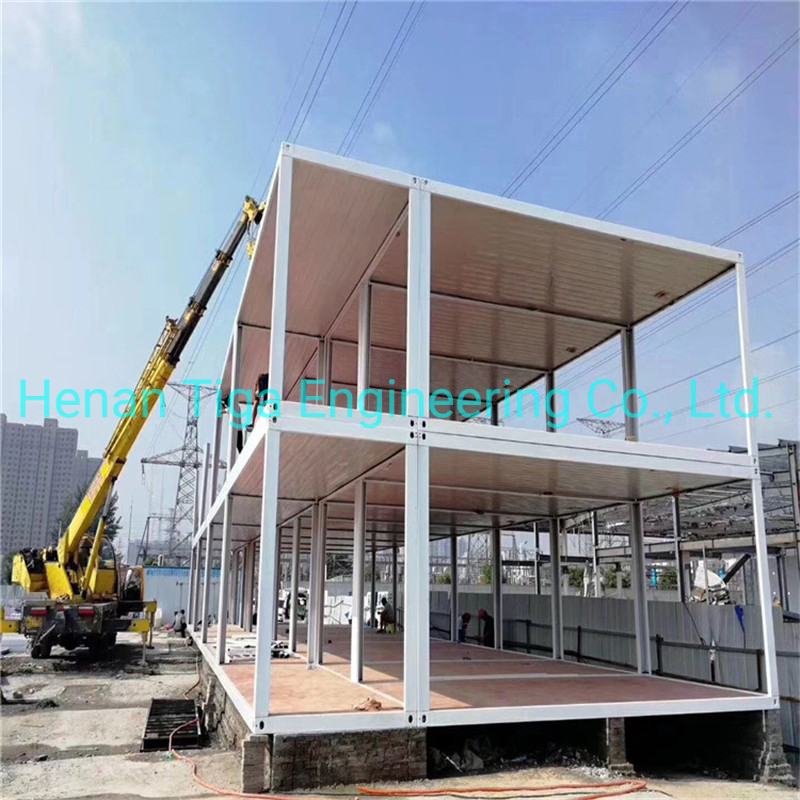

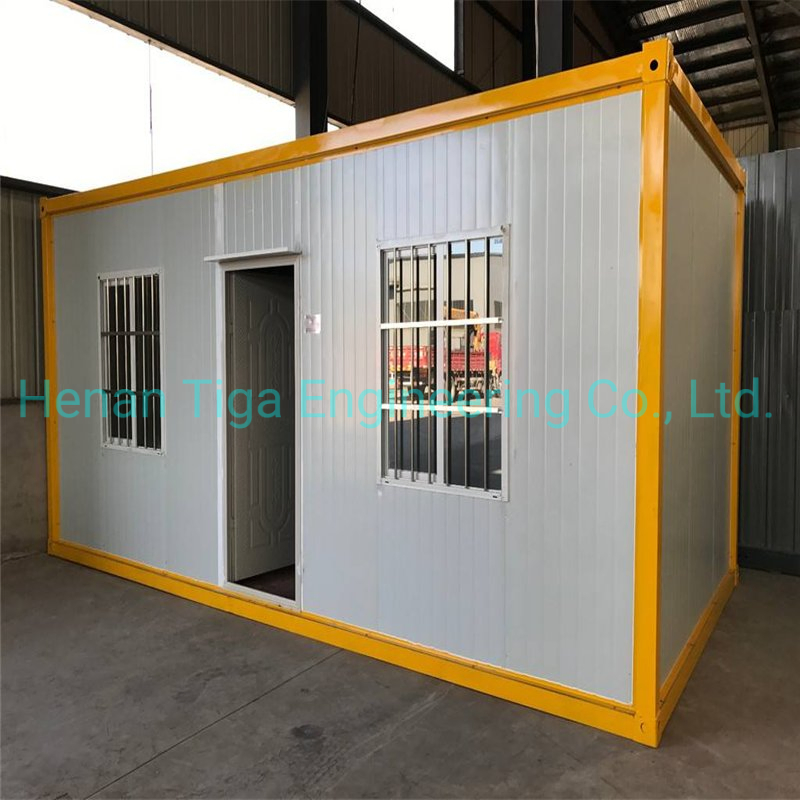

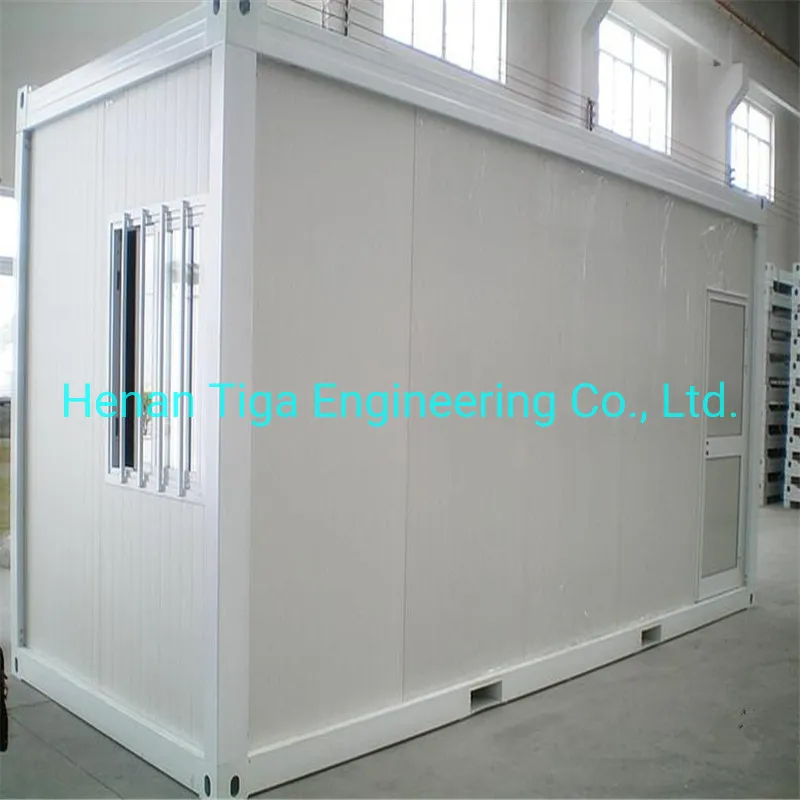

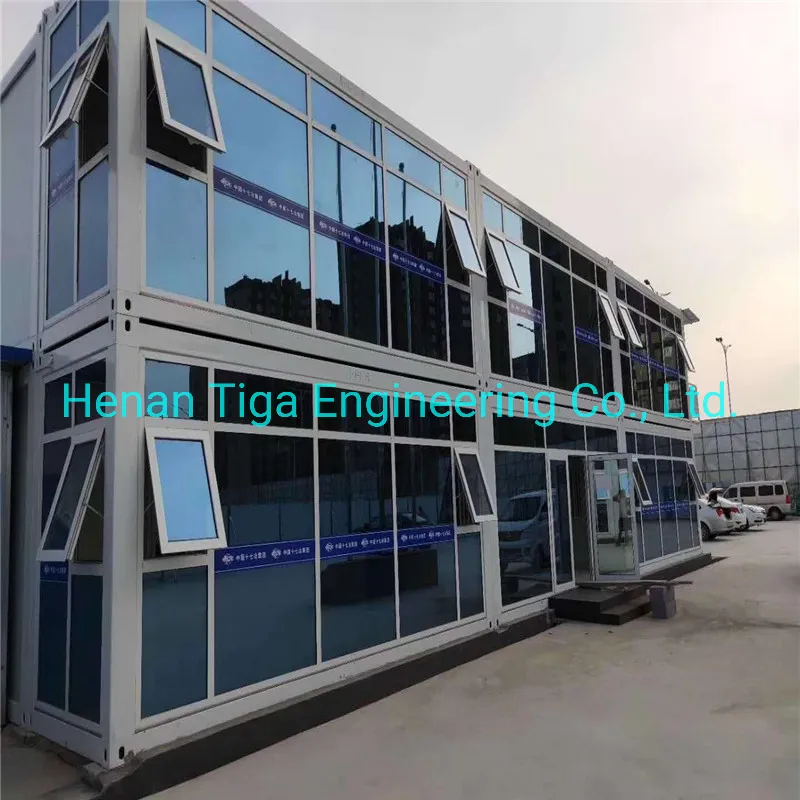

Flat Pack Container is 6.055m*2.435m*2.896m, with EPS/IEPS/Rock wool sandwich panel for wall & Glass wool for roof! 6 workers can install 1 unit in 2 hours! Can stack up to 3 floors! Electric wires runs over ceiling, including DB, breaker, power inlet & lights. Sockets & Switch included. Total-sealed-top & corner-draining system ensures no water leaking on roof top. Fully Welded Top frame + truss & Bottom frame + supports ensure product strength!

Category System Specification Details
Standard accessory Roof System Q345B steel structure+ two-sides 0.45mm steel sheets + 70mm PU foaming integrated formed roof + Electrical tube and wiring +outdoor connection socket+distribution box
Chassis System steel struction chassis + 18mm thickness cement-fiber board + 2mm thickness PVC floor sheet (glass wool insulation for optional)
Permitted loading:>2.5KN/m2
Wall System 50/75/100mm EPS sandwich panel, rock wool sandwich panel,glass fiber sandwich panel, or PU sandwich panel
Door System Steel door / Fire-proof door / Sandwich panel door
Window System Aluminum alloy shutter window and the plastic-steel window, single or double glass
Floor System PVC, plywood or customized
Option Drainage system Provided plan, design and constrution
Electric system Provided plan, design and constrution
Technical parameter Resistant temperature -40ºC to 40ºC
Wind resistance 210km/h
Earthquake resistance Grade 8
Frequently Asked Questions
Q1: What is the expected life span of the container house? The container house is designed for long-term use, with a service life reaching up to 15 years for standard units, and over 30 years for high-spec main structures.
Q2: How fast can a container unit be installed? It is designed for rapid deployment. For a standard flat pack container, 6 workers can complete the installation of 1 unit in approximately 2 hours.
Q3: Is the structure resistant to earthquakes and wind? Yes, the units are highly durable, featuring Grade 7-8 earthquake resistance and Grade 11 wind resistance (up to 210km/h).
Q4: What types of materials are used for wall insulation? We offer various high-quality sandwich panels, including EPS, Rock Wool, PU, and Glass Fiber, depending on your thermal requirements.

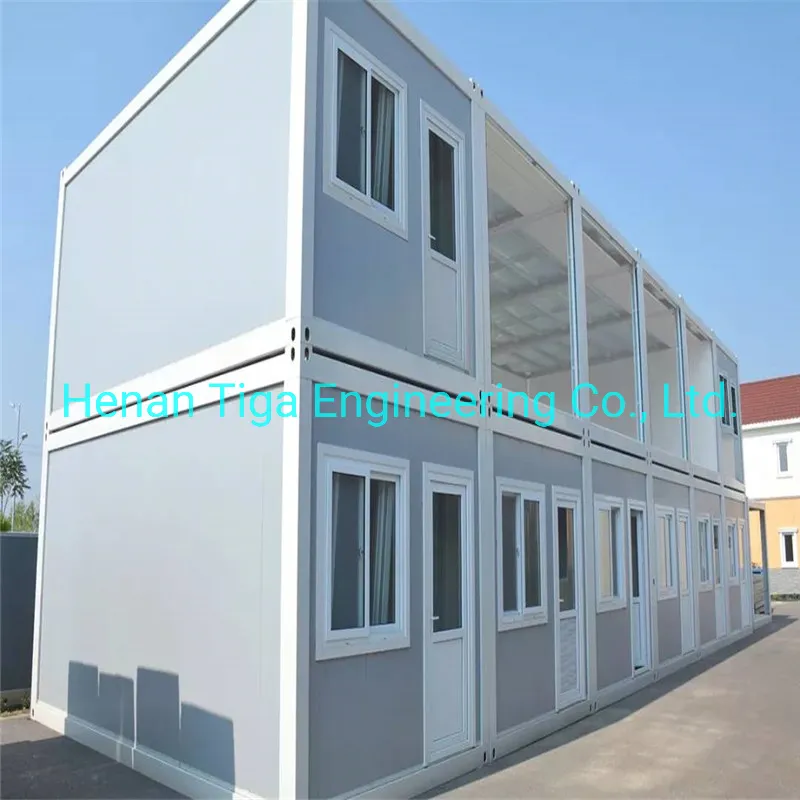

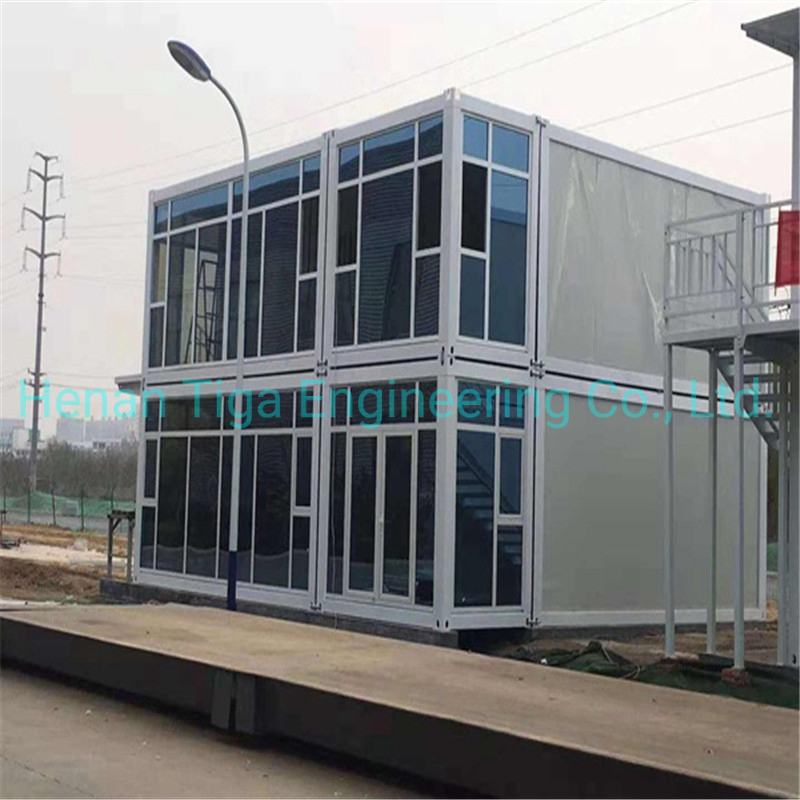

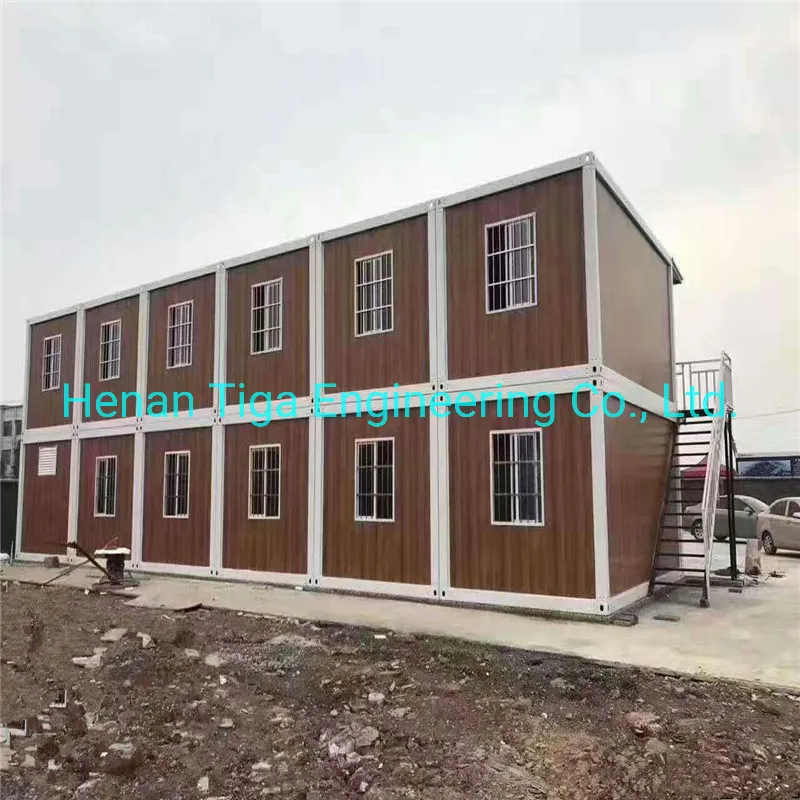

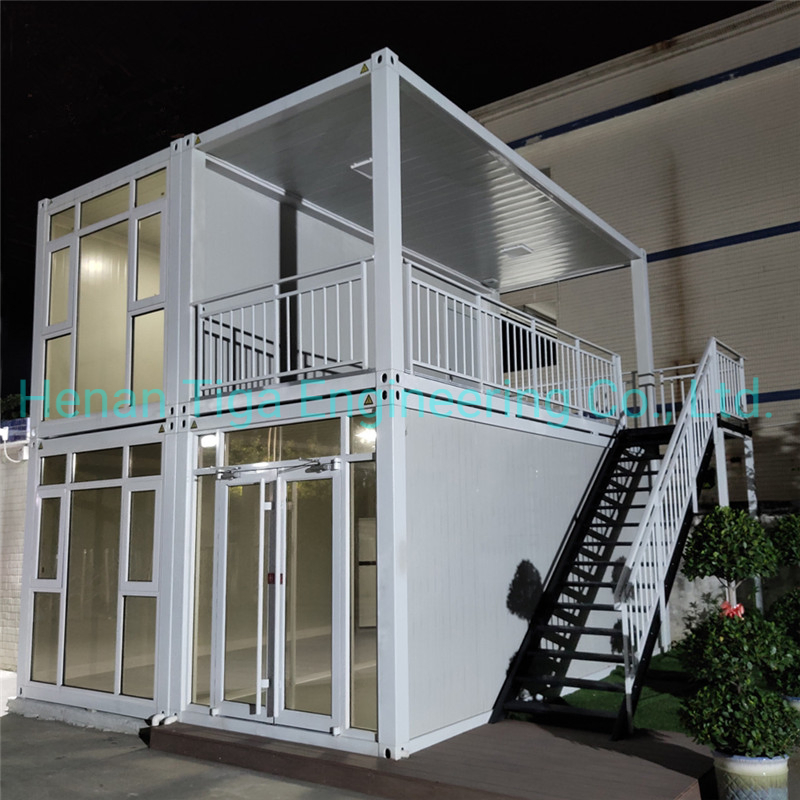

Q5: Can these container houses be stacked? Yes, the fully welded top and bottom frames provide enough structural strength to safely stack the units up to 3 floors.
Q6: Are electrical systems included? Yes, the units come with electric wires running over the ceiling, including a distribution box, breakers, power inlets, lights, sockets, and switches.
