Product Description

Basic Information Overview
Model NO.
44080E
Standard
Standard
Certification
ISO, CE
Carry Way
Engine Maintenance
Condition
New
After-Sales
One Year
Specification
470*470*880MM
Capacity
1000sets/Month
Product Description
15 Gallon Mobile Gravity oil Collector

15 Gallon Mobile Gravity Oil Collector (70 Liters)

Designed for professional automotive maintenance, this pneumatic waste oil drain collector offers a reliable solution for central oil recovery.

  • Height adjustable telescopic steel drain pan with grid filter.
  • Air discharge drain mechanism with included hose.
  • Integrated reservoir oil level indicator tube for easy monitoring.
  • Powered by air compressor for safe and efficient operation.
Technical Specifications
Item No.44080E
Tank Capacity15 Gallons / 70 Litres
Tank Sizeφ15inch X 22inch
MaterialST14 cold rolled steel plate
Lifting height0.58m - 1.55m
Scope of oil collectingφ23'' / φ0.58m
Prechamber capacity10L
Prechamber sizeØ220 x 285mm
Air working pressure6-8 Bar (87 - 116 psi)
Safety valve21.75 psi
Hose Length (Suction/Discharge)63inch / 1.6m
Wheel Configuration6-Inch fixed (x2), 3-Inch rotatable (x2)
Detailed Visuals
Waste Oil Drainer Detail 1

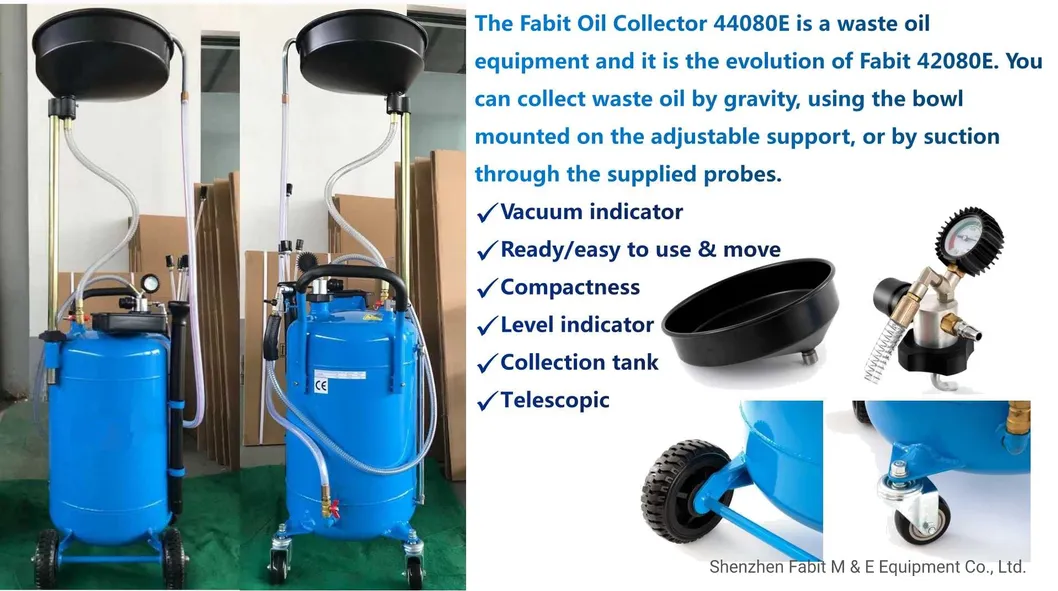

Waste Oil Drainer Detail 2

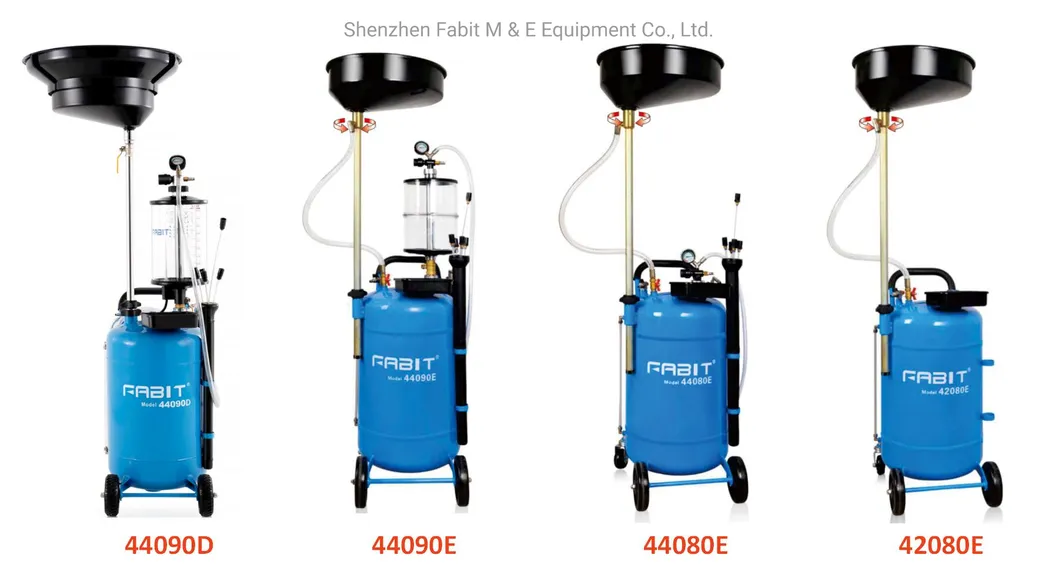

Waste Oil Drainer Detail 3
Waste Oil Drainer Detail 4
Waste Oil Drainer Dimension
Frequently Asked Questions
What is the total capacity of this oil collector?
This model features a 15-gallon (70-liter) main tank, along with a 10-liter prechamber for efficient waste oil management.
How is the waste oil discharged from the tank?
The unit utilizes pneumatic discharge powered by an air compressor, making the emptying process safe, fast, and effortless.
Is the collection pan height adjustable?
Yes, the telescopic steel drain pan can be adjusted between a lifting height of 0.58m and 1.55m to accommodate different vehicle heights.
What air pressure is required for operation?
The recommended air working pressure is between 6-8 Bar (87 - 116 psi) for optimal performance.
Does it come with a safety mechanism?
Yes, the collector is equipped with a safety valve set at 21.75 psi to prevent over-pressurization during the discharge cycle.
Is it easy to move around a workshop?
The unit is highly mobile, featuring two 6-inch fixed bearing wheels and two 3-inch rotatable casters for easy steering and stability.
