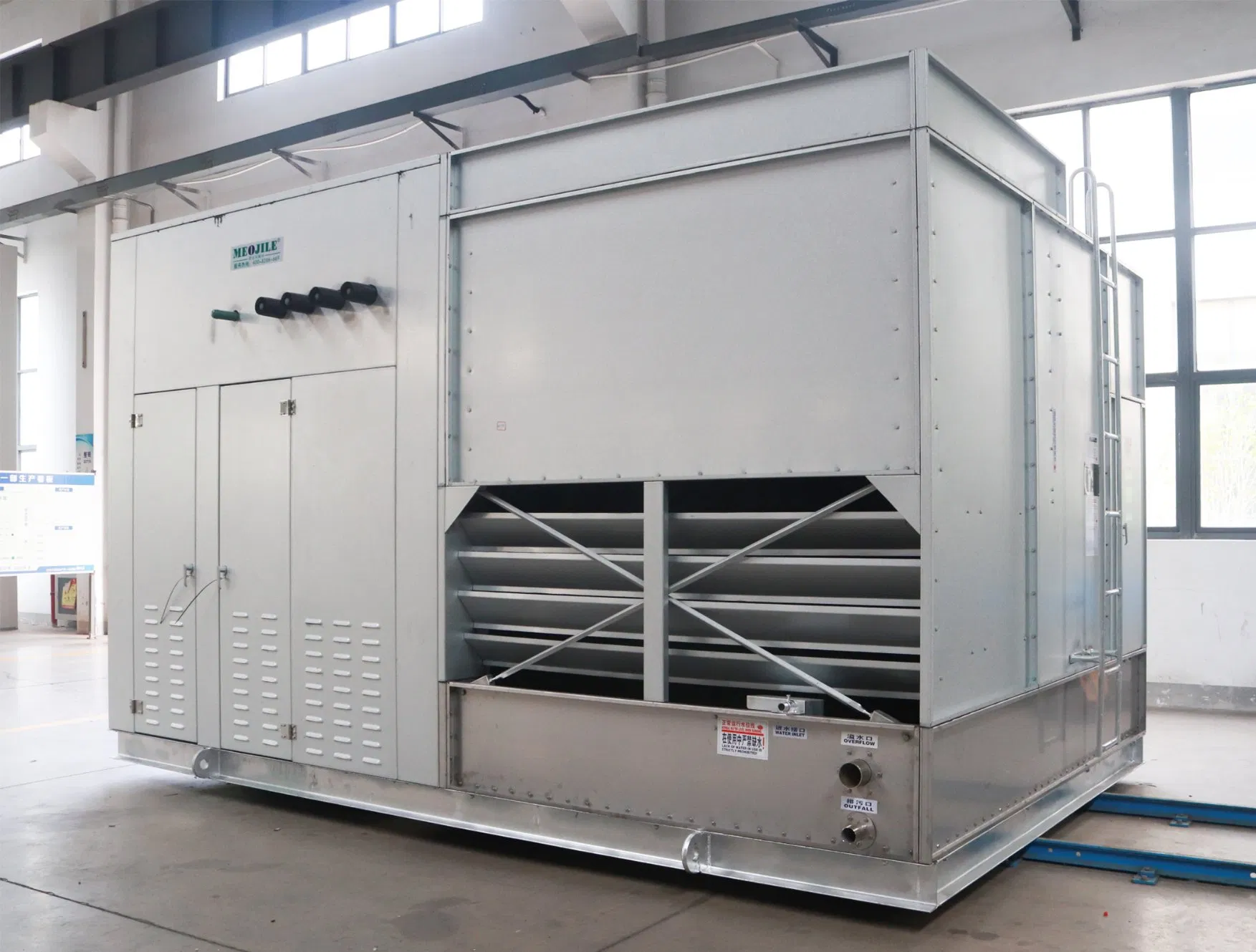

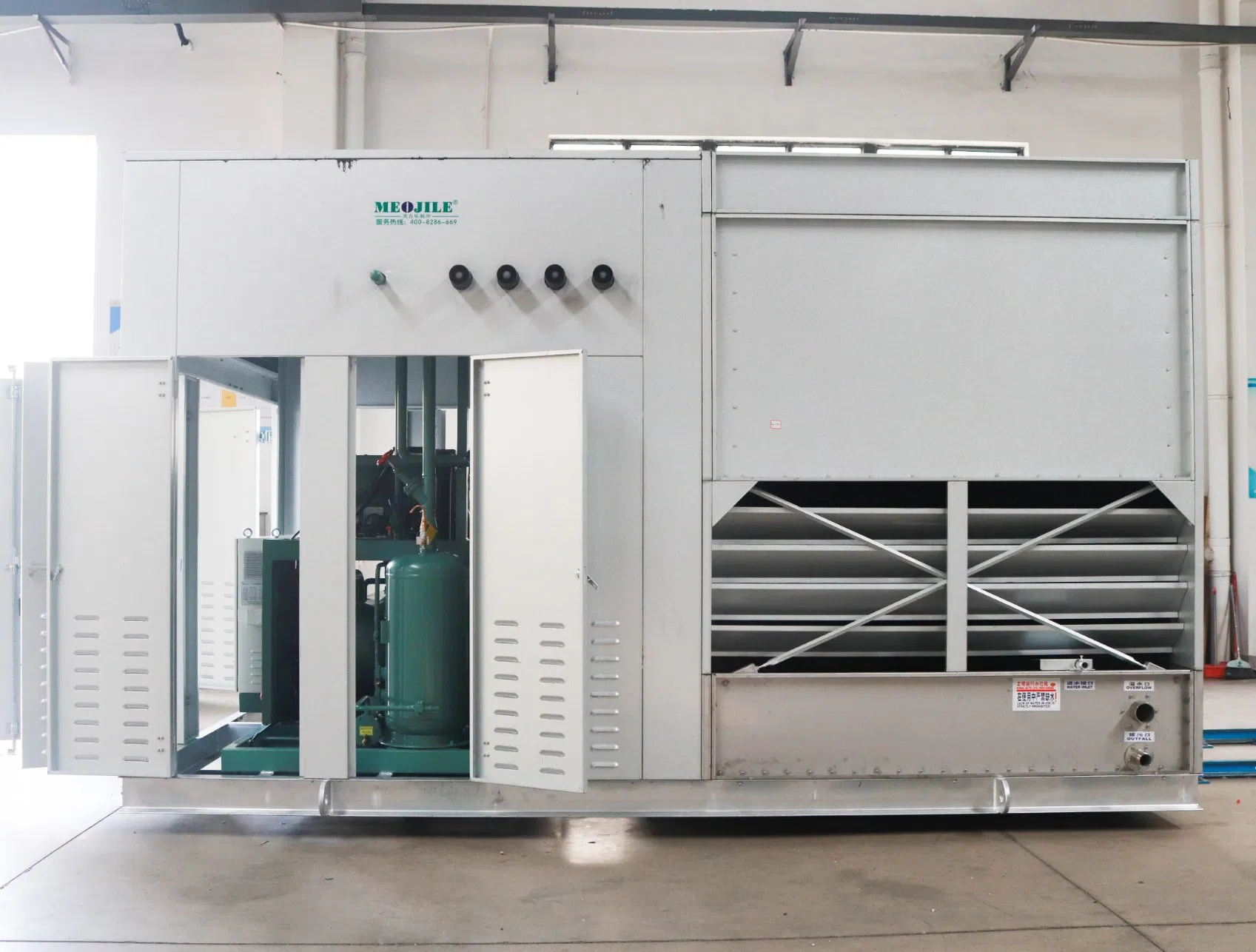

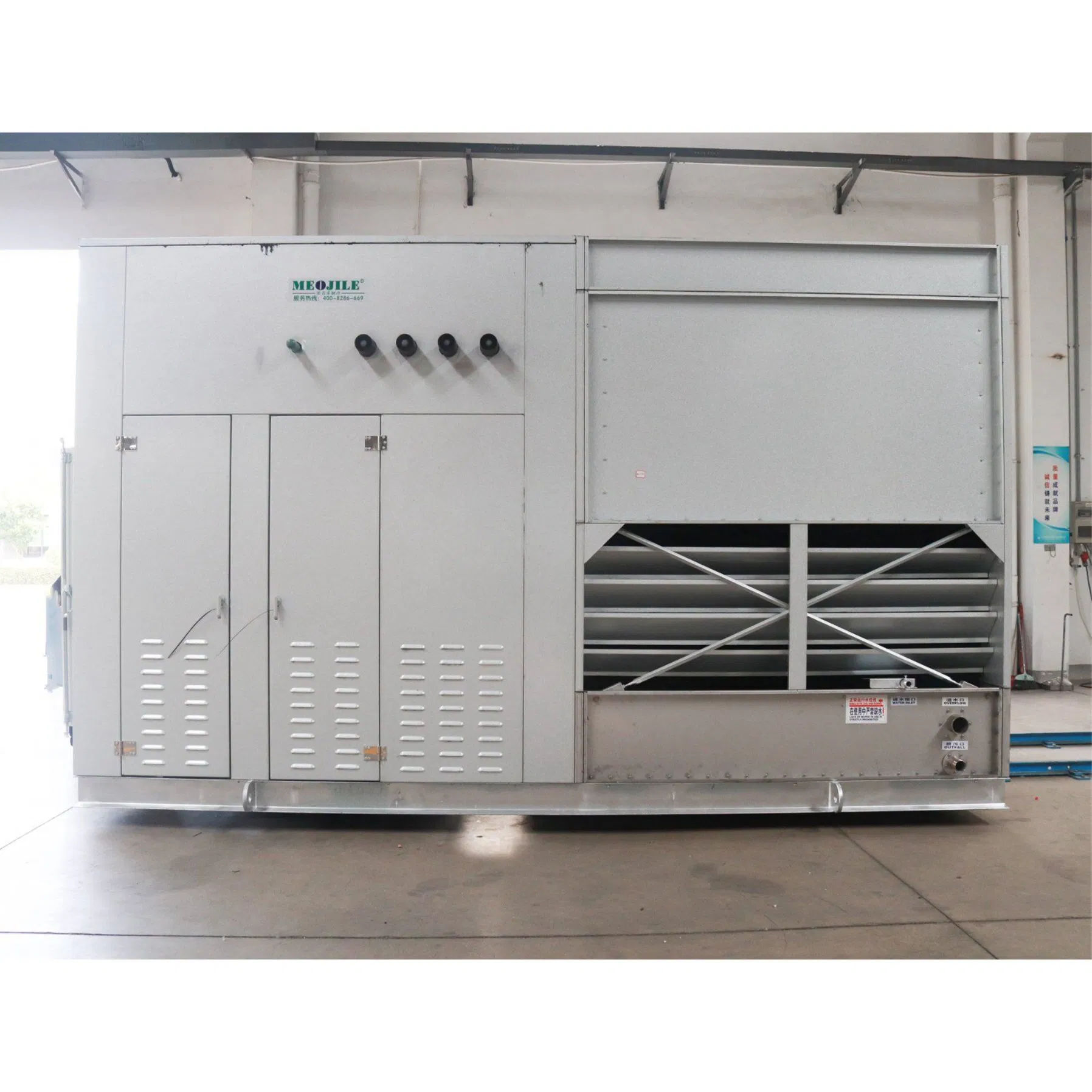

120HP Container Type Condensing Unit with B Itzer Piston Compressor

1 / 5

120HP Container Type Condensing Unit with B Itzer Piston Compressor

Customization:	Available
After-sales Service:	Oversea Aftersales Is Available
Warranty:	12 Months

Send Inquiry

Product Description

📋 Basic Information

Model NO.

MBZBFF3-120M(Y)

Principle

Reciprocating Compressor

Application

Room Temperature Control

Performance

Low Noise, Variable Frequency

Drive Mode

Electric

Power Source

DC Power

Compressor

Bitzer

Cooling Type

Air Cooled

120HP

Voltage

380V/3p/50Hz

Package Size

320cm * 120cm * 185cm

Gross Weight

2000.00kg

📍 Overview

MBZBFF series products are applicable to large-scale -20ºC to +5ºC temperature refrigeration systems. These units are widely utilized across various sectors including industrial freezing, hotel cold storage, medical storage, express logistics, and vegetable/fruit storage. Our advanced refrigeration technology is engineered to meet diverse cooling requirements with high-efficiency solutions.

✔ Key Features

Reliable System: Equipped with famous brand compressors, PLC controllers, and high-efficiency oil separation systems.

Advanced Compressor: German technology low-temperature screw/piston compressors featuring long service life and minimal vibration.

Complete Protection: Built-in safeguards for wrong direction, overheating, overload, discharge temperature, and oil pressure safety.

Enhanced Capacity: Units are matched with economizers to effectively increase low-temperature operating capacity.

📝 Model Nomenclature

M BZ BF F 2-S 100 / J Y
------------------------------------------
BZ: Bitzer Compressor
BF: Piston Type Compressor
F: Air Cooled / Evaporative Condenser
2: Compressor Quantity
S: Two-stage Compressor ( /: Single stage )
100: Horsepower (HP)
Temp Range: H(+20ºC) | M(+5ºC) | L(-10ºC) | J(-30ºC to -50ºC)

⚙ Main Components

Compressor, Condenser, Pressure Controller, Oil Gauge, Filter Vat, Accumulator, Suction Check Valve, Oil Separator, Solenoid Valve, Economizer, Expansion Valve, Siemens HMI, PLC Controller, and LP Sensors.

📊 Technical Specifications

Piston Compressor Racks for Middle Temperature Cold Room
Unit Model (MBZBFF3-)	30M(Y)	45M(Y)	60M(Y)	75M(Y)	90M(Y)	105M(Y)	120M(Y)	150M(Y)
Refrigerant	R22 / R404A / R507A
Bitzer Model	4VES-10	4PES-15	4NES-20	4HE-25	4GE-30	6HE-35	6GE-40	6FE-50
Cooling Capacity (KW)	57.87	79.8	95.7	127.2	145.8	186.6	212.4	259.2
Power Input (KW)	22.8	31.74	37.98	50.28	58.11	75.0	86.7	107.4
Dimensions L (mm)	2800	2800	2800	2900	2900	3200	3200	3200

* Cooling capacity and power calculated @ 45ºC condensing temperature with air cooled condenser.

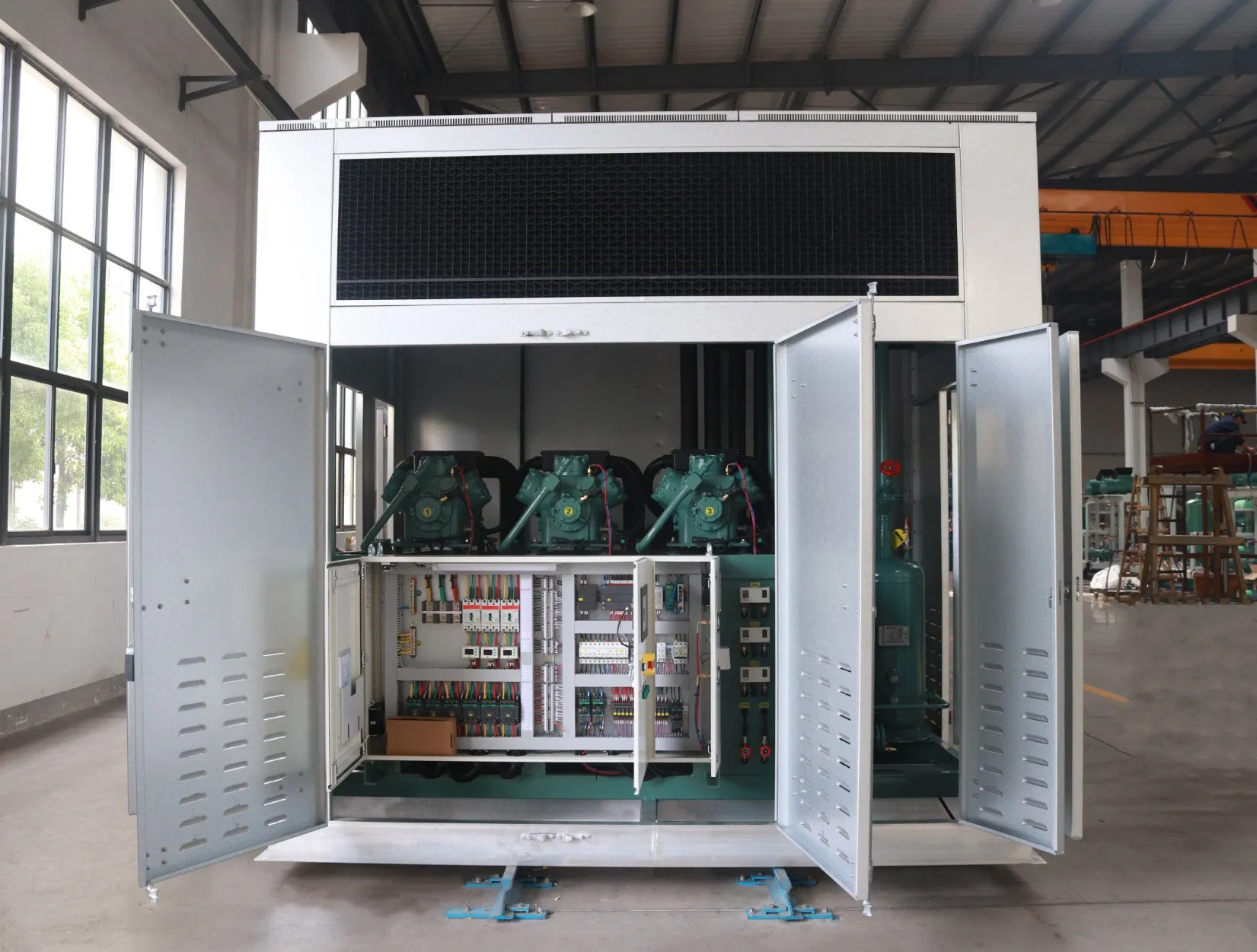

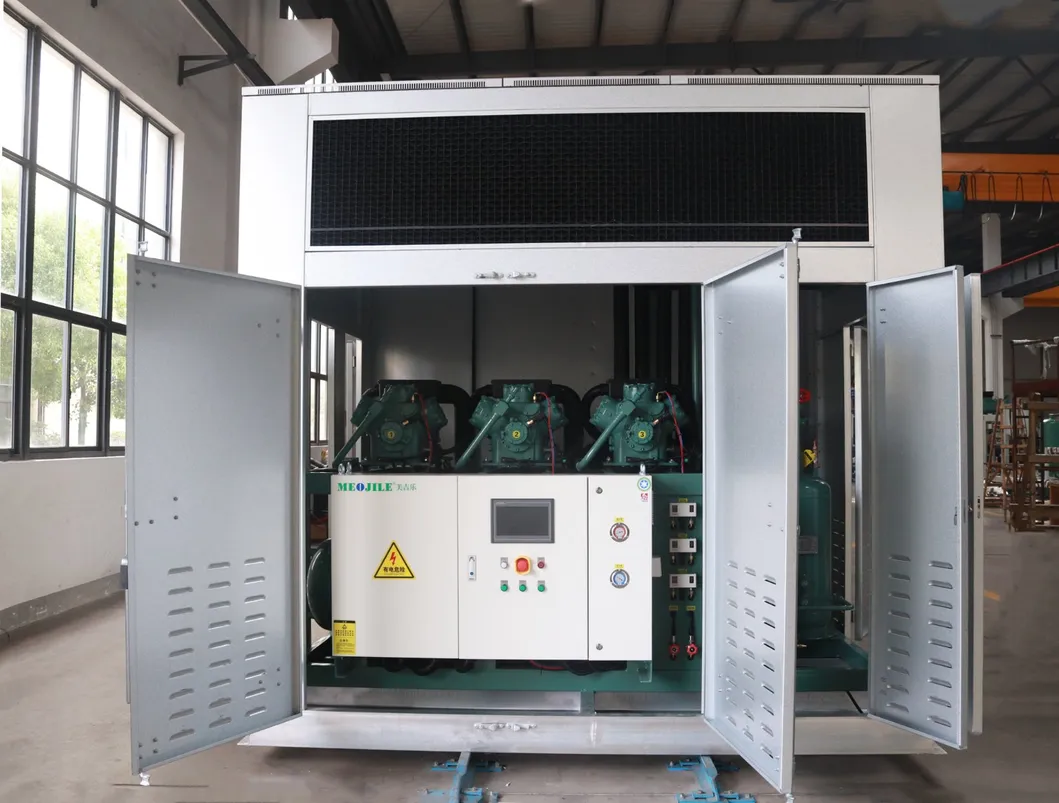

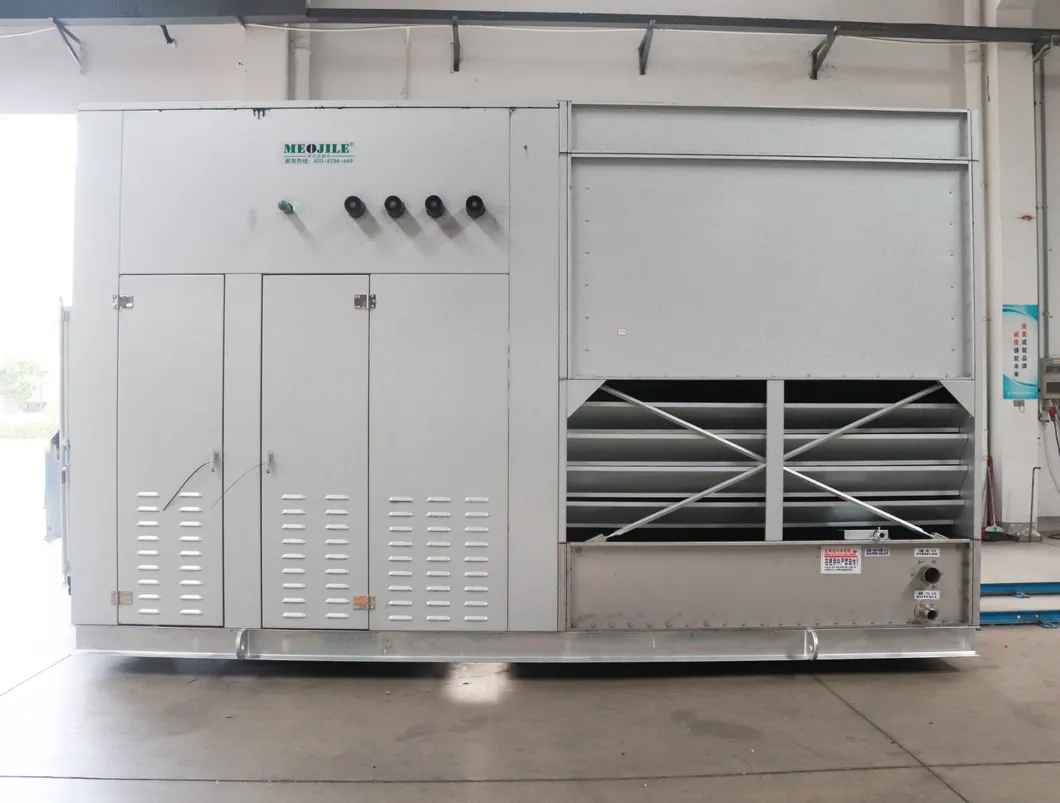

📷 Detailed Photos

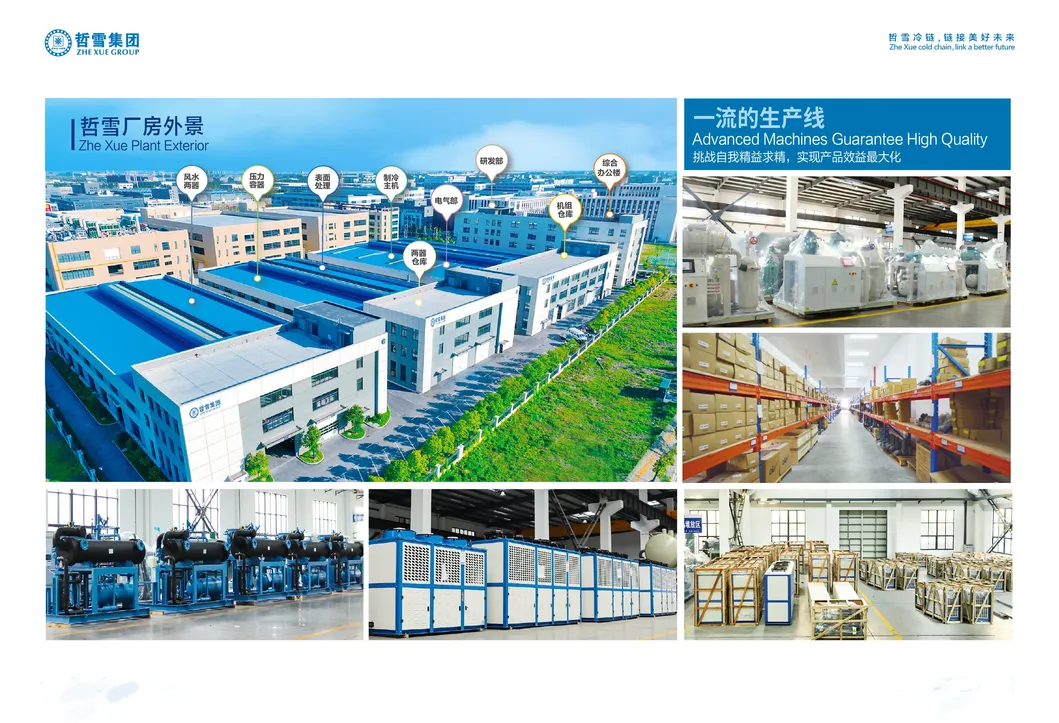

🏭 Production & Facilities

❓ Frequently Asked Questions

What is the primary temperature range for this unit?

The MBZBFF series is specifically designed for middle to low temperature ranges, typically from -20ºC to +5ºC, making it ideal for food storage and industrial cooling.

What brand of compressor is used in these racks?

We utilize world-renowned Bitzer piston compressors, known for their high efficiency, reliability, and long service life.

Can the unit be customized for different voltages?

The standard specification is 380V/3P/50Hz, but we offer customized solutions to meet specific electrical requirements and different refrigeration needs.

What control system does the unit use?

The system is managed by a high-end PLC controller with a Siemens HMI (Human Machine Interface) touch screen for precise monitoring and easy operation.

Are there safety protections built into the system?

Yes, the unit includes a complete set of protection devices for motor overheating, overloading, discharge temperature monitoring, and high/low oil pressure safety.

What applications are best suited for this equipment?

This equipment is widely used for industrial freezing, hotel cold storage, medical storage, ice making, and large-scale fruit and vegetable preservation workshops.
