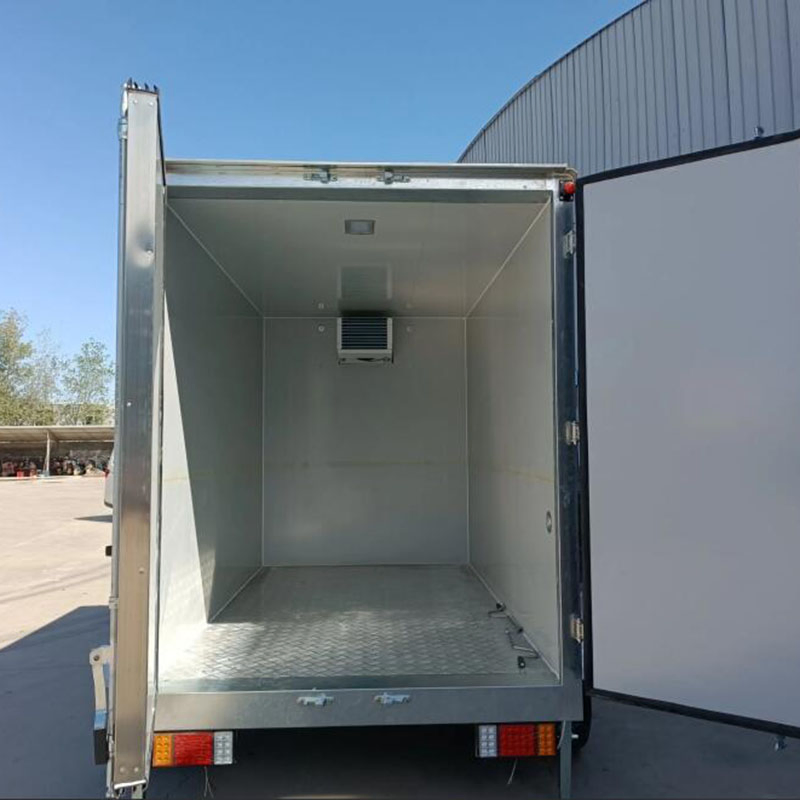

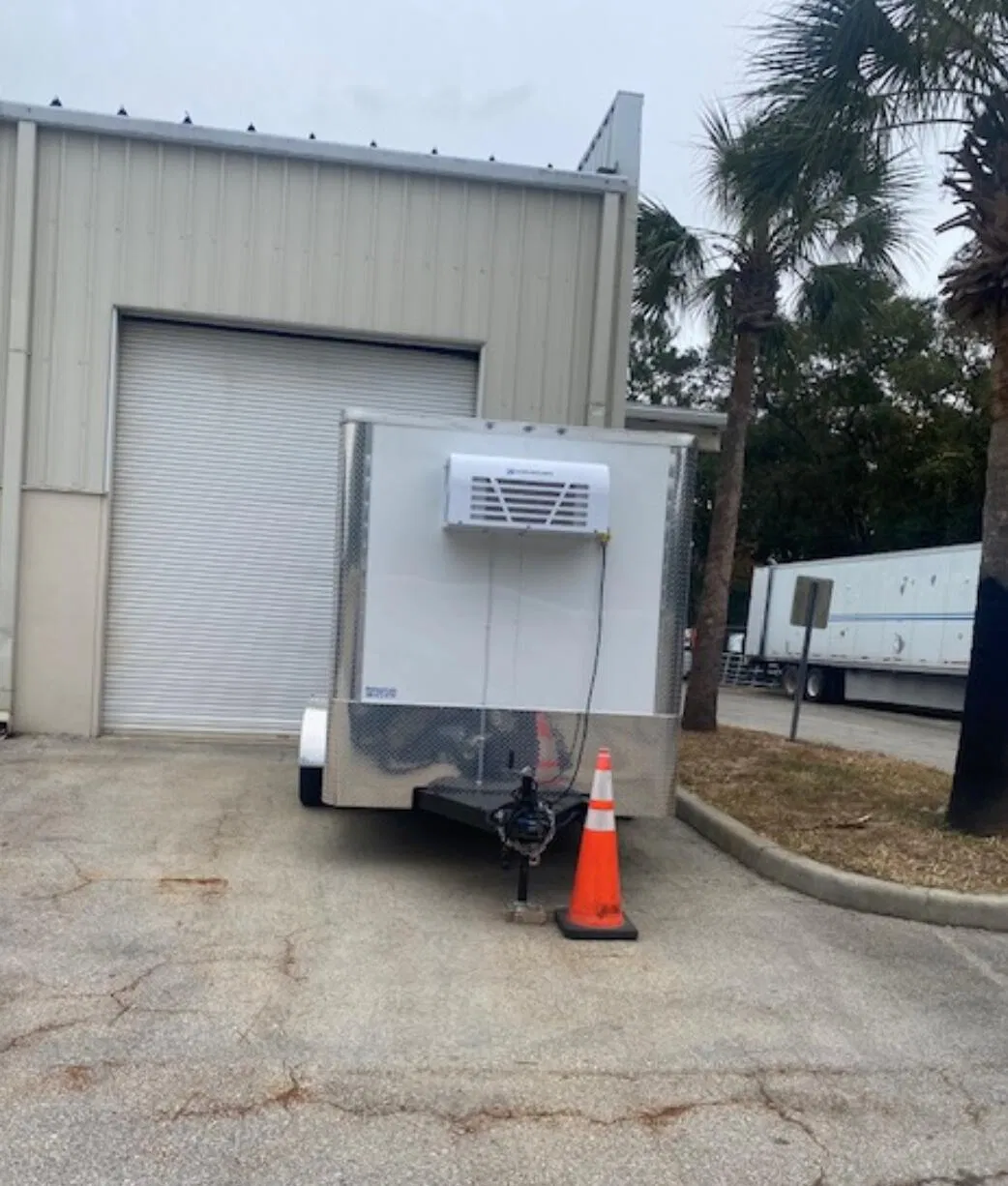

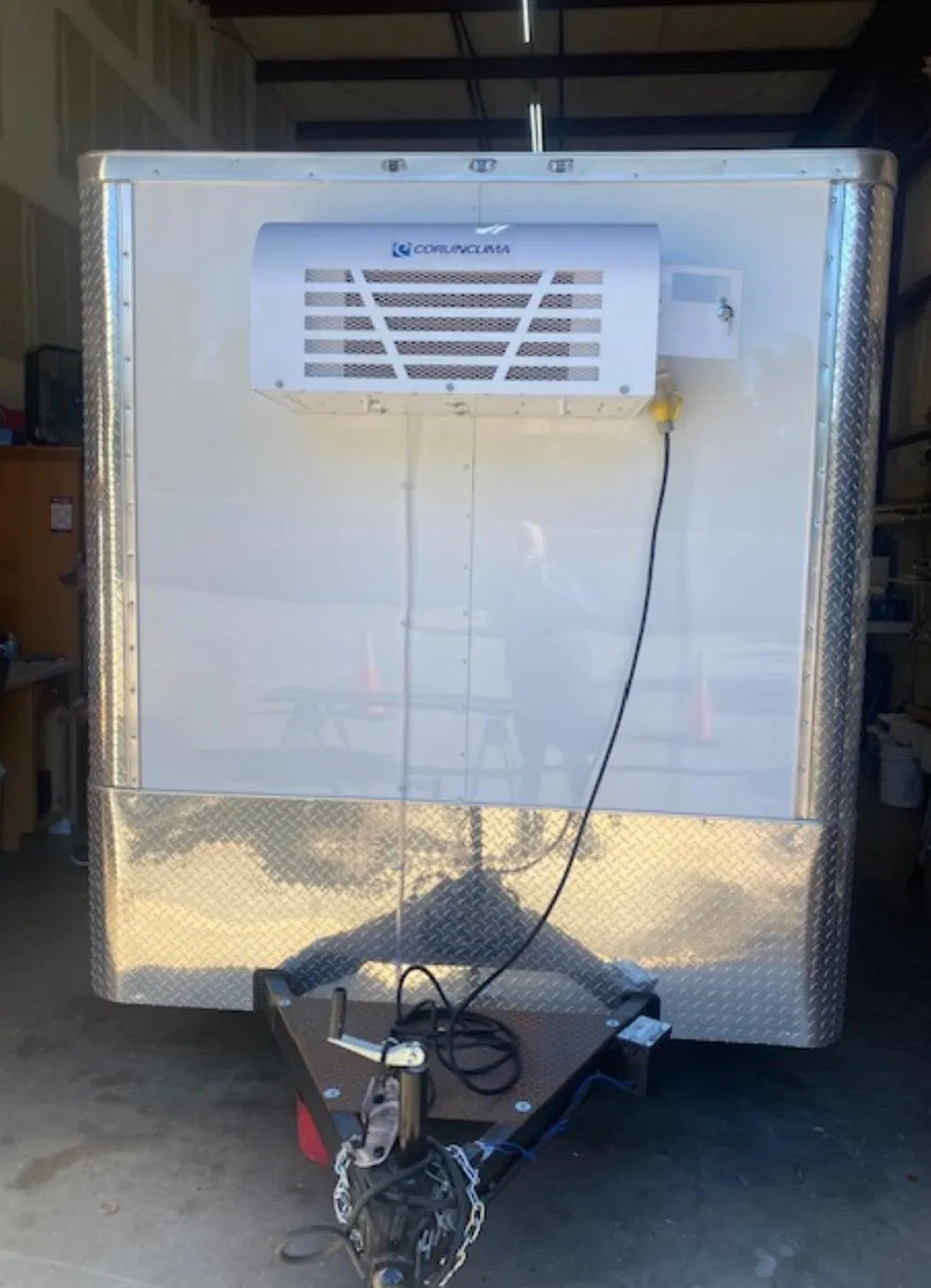

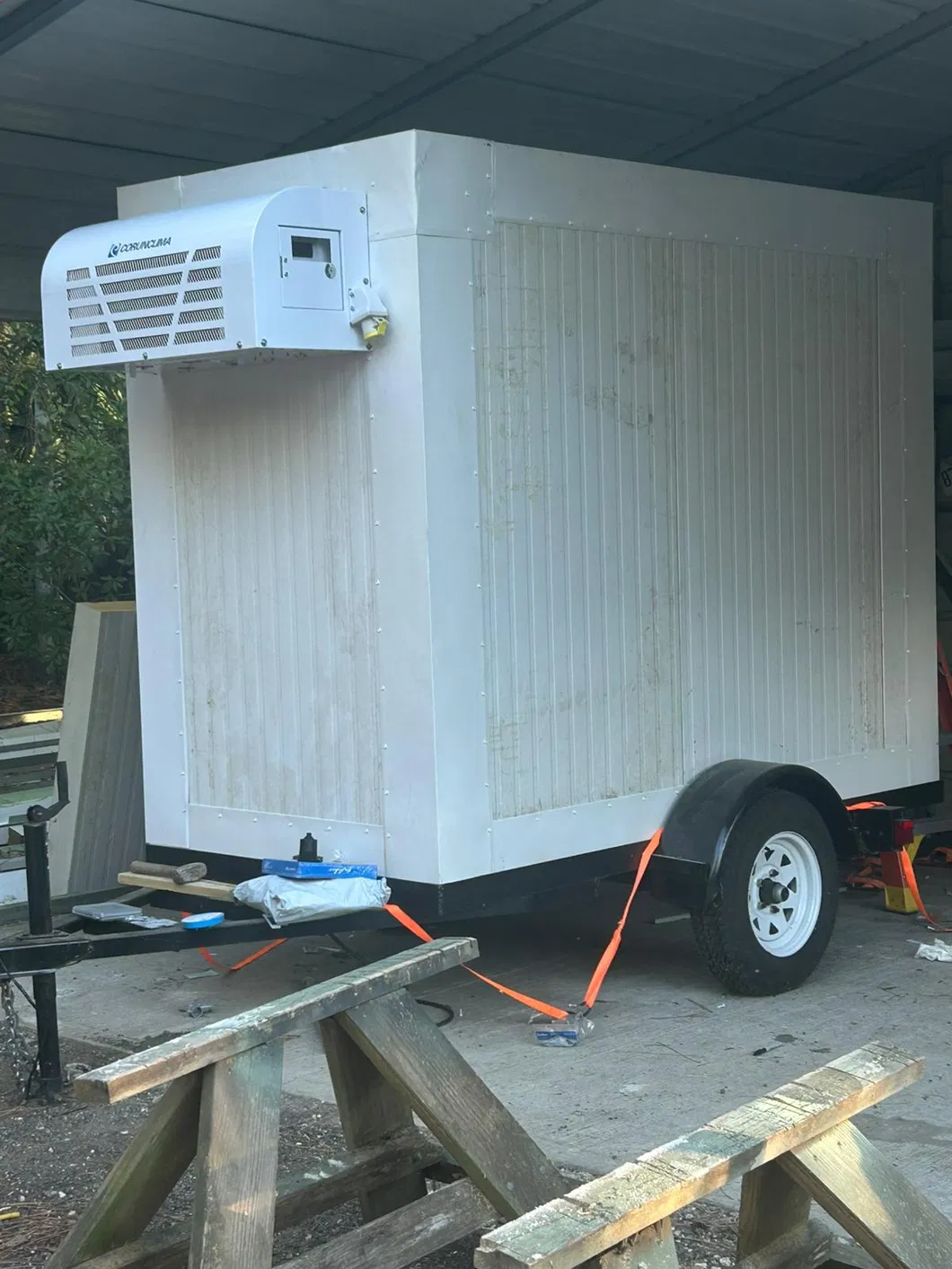

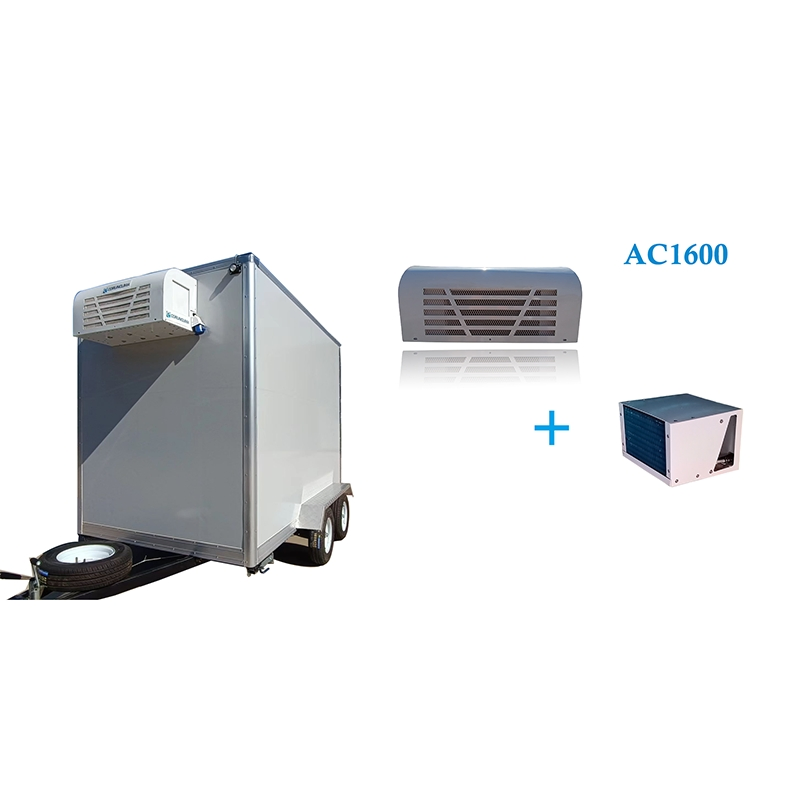

Freezer units for small Mobile Trailer. Portable cold room freezer solutions available in 110V, 220V, and 240V.

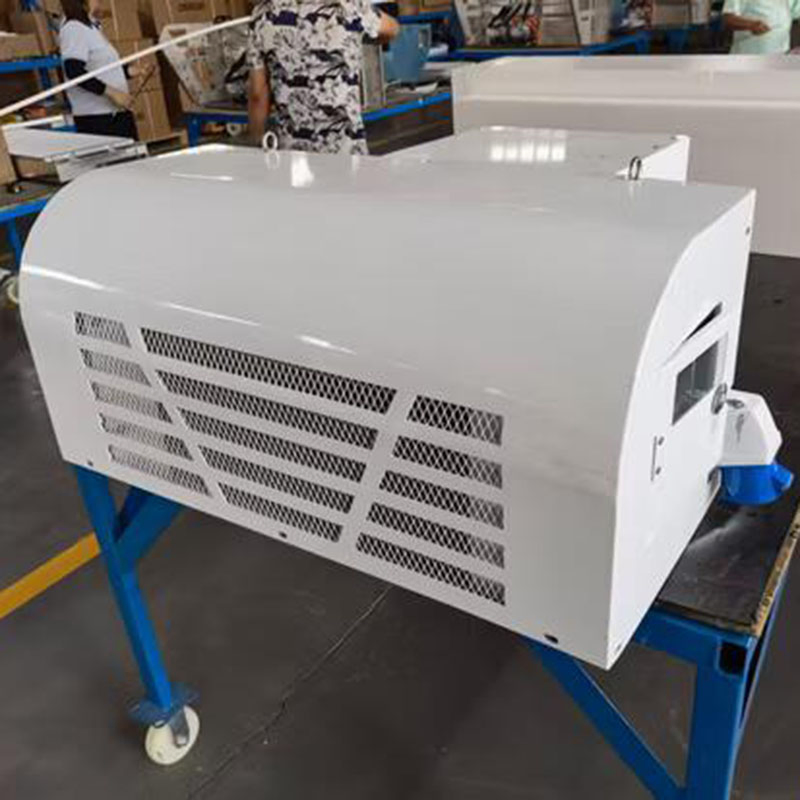

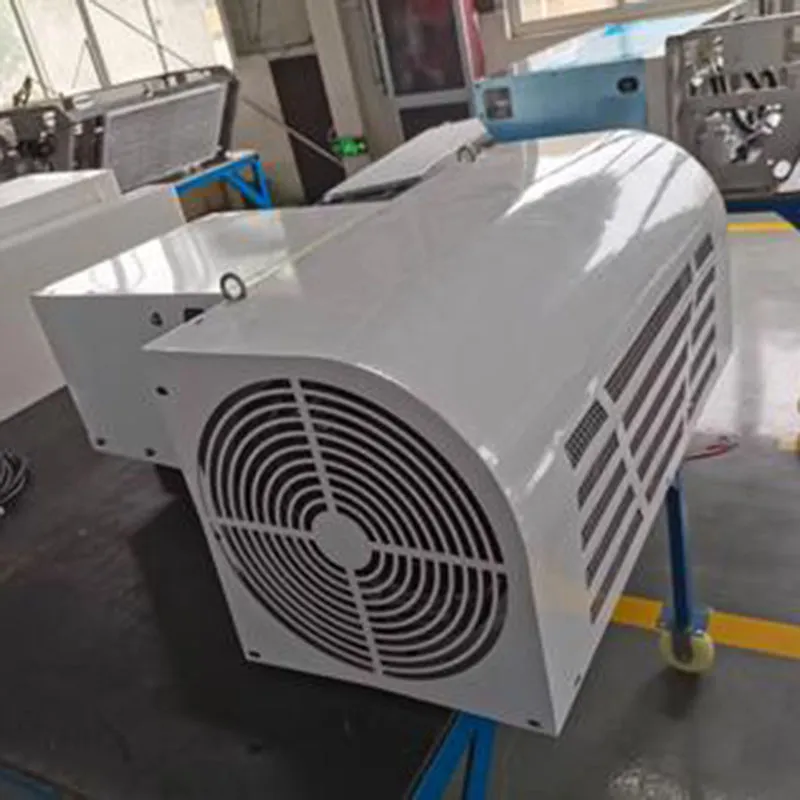

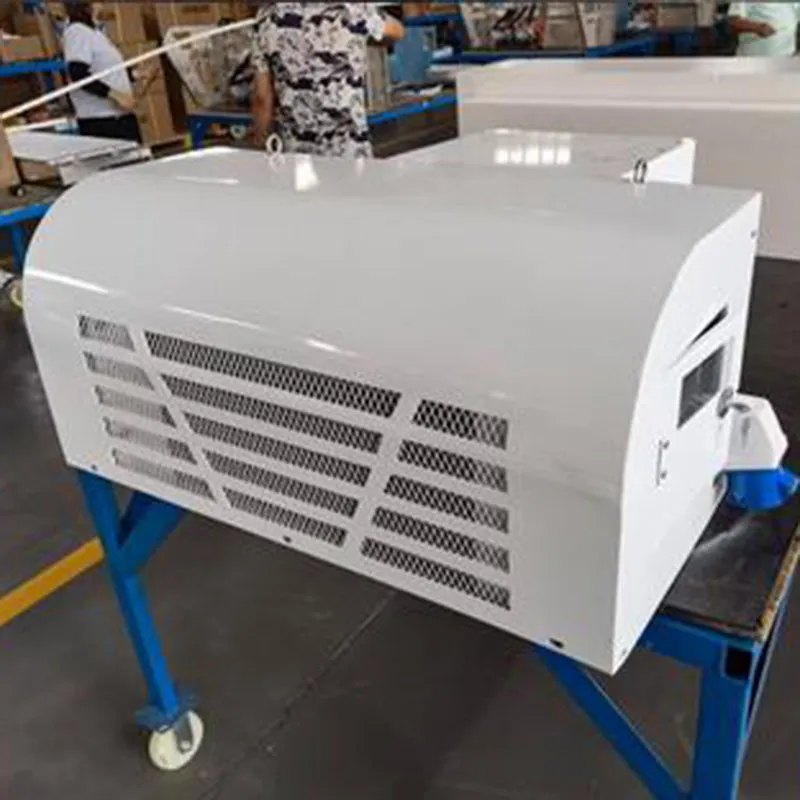

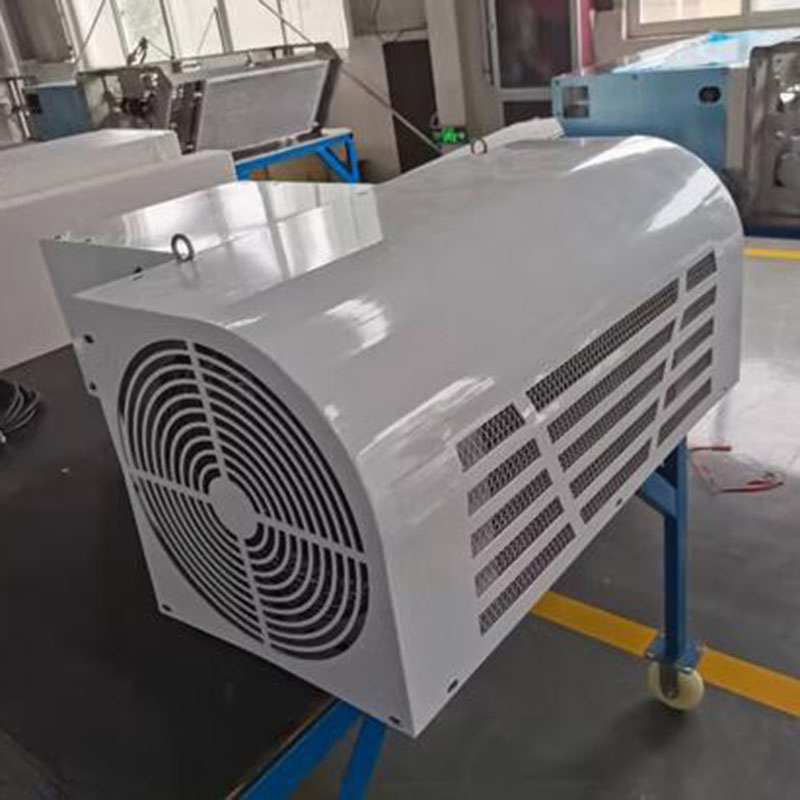

Monoblock type design: condenser, evaporator, and compressor are all integrated into one piece for reliability and easy installation.
| Model No. | C16E (Chiller) | R16E (Freezer) |
|---|---|---|
| Temperature | -5°C ~ +25°C | -18°C ~ +25°C |
| Max Volume | 12m³ | 12m³ |
| Voltage | AC110-120V/220V/380/400V | |
| Cooling Capacity | 1600W | 1600W |
| Refrigerant Gas | R134A | R404A |
| Compressor | AC Electric compressor | |
| Weight | 40Kg | 42Kg |
| Model No. | C24E (Chiller) | R24E (Freezer) |
|---|---|---|
| Temperature | -5°C ~ +25°C | -18°C ~ +25°C |
| Max Volume | 25m³ | 25m³ |
| Voltage | AC110-120V/220V/380/400V | |
| Cooling Capacity | 2200W | 2200W |
| Refrigerant Gas | R134A | R404A |
| Air Flow Evap. | 1200m³/h | 1200m³/h |
| Weight | 55kg | 58kg |
Since 2008, we have focused on transport refrigeration and commercial vehicle air conditioning. With ISO9001, E-mark, and ATP certifications, our products are exported globally.

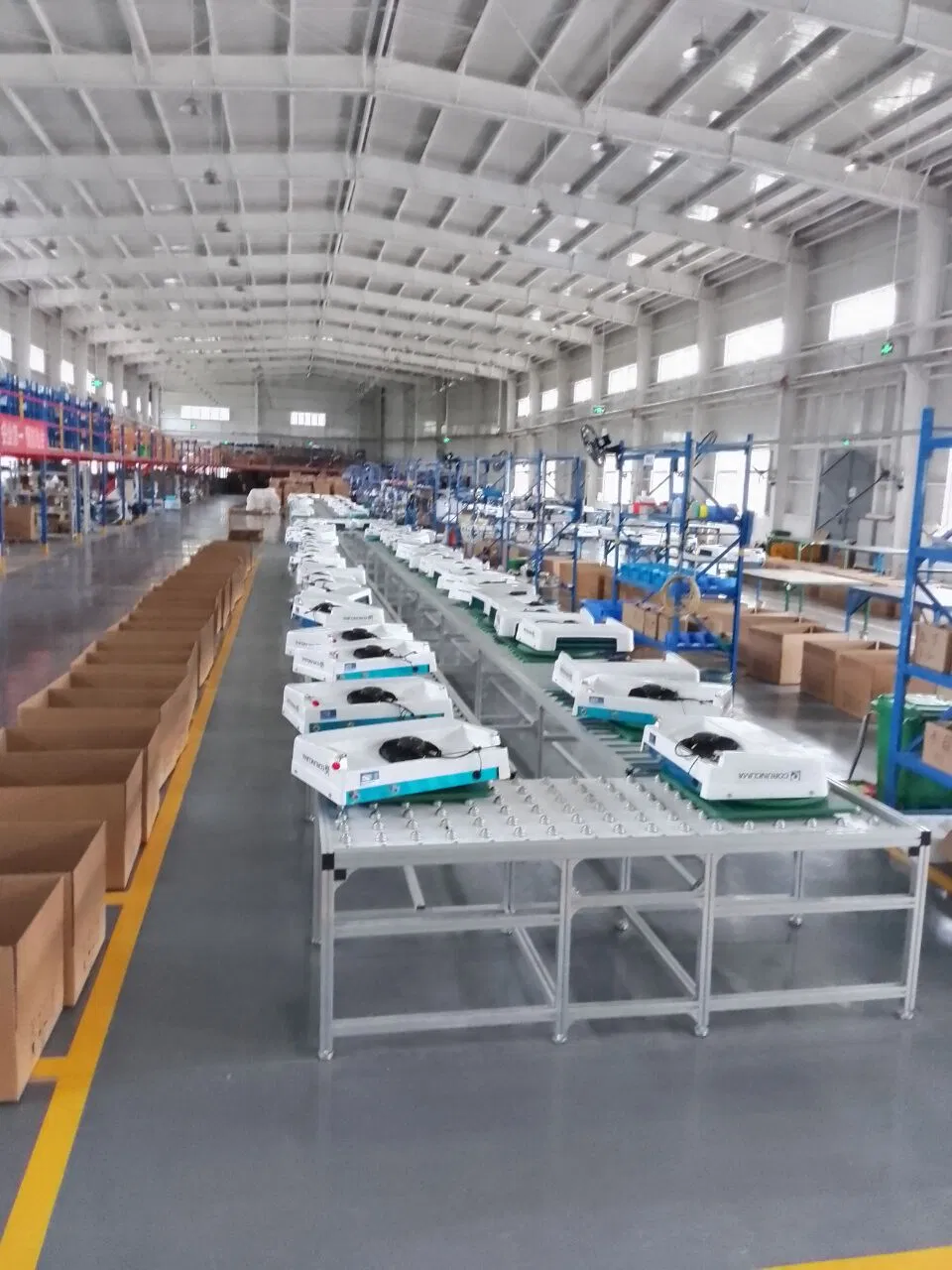

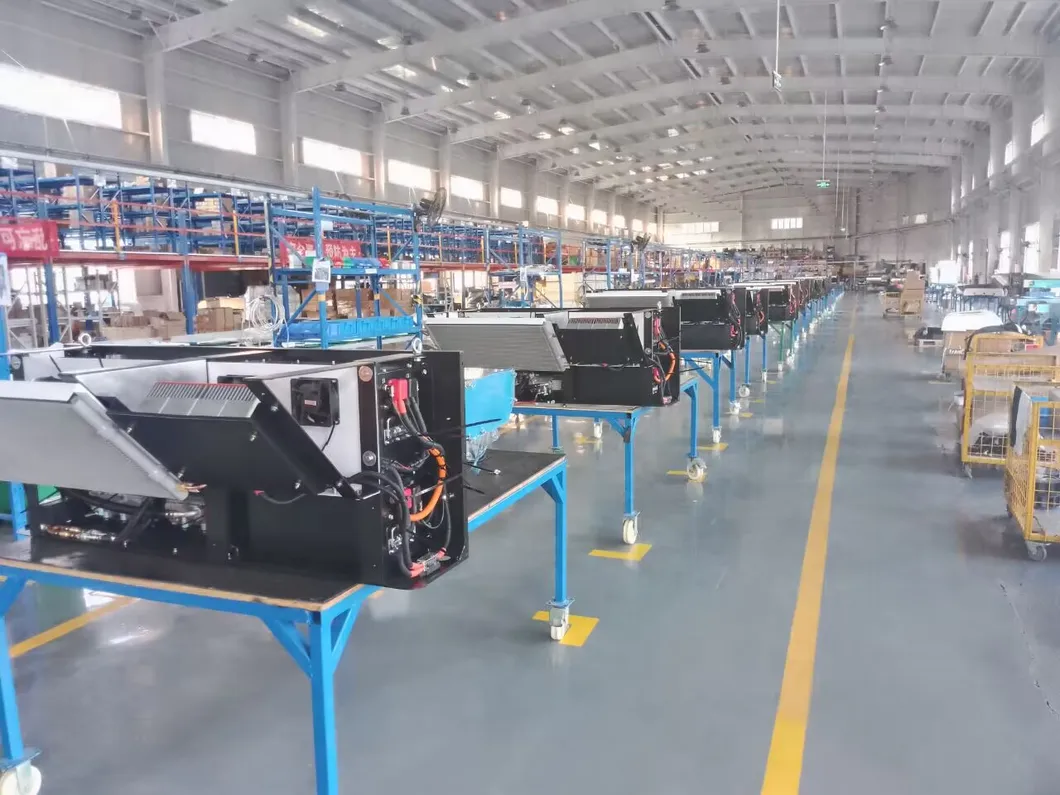

Every unit undergoes three strict tests before delivery: 100% pressure test for leak detection, 100% electric test, and 3% performance sampling test.
