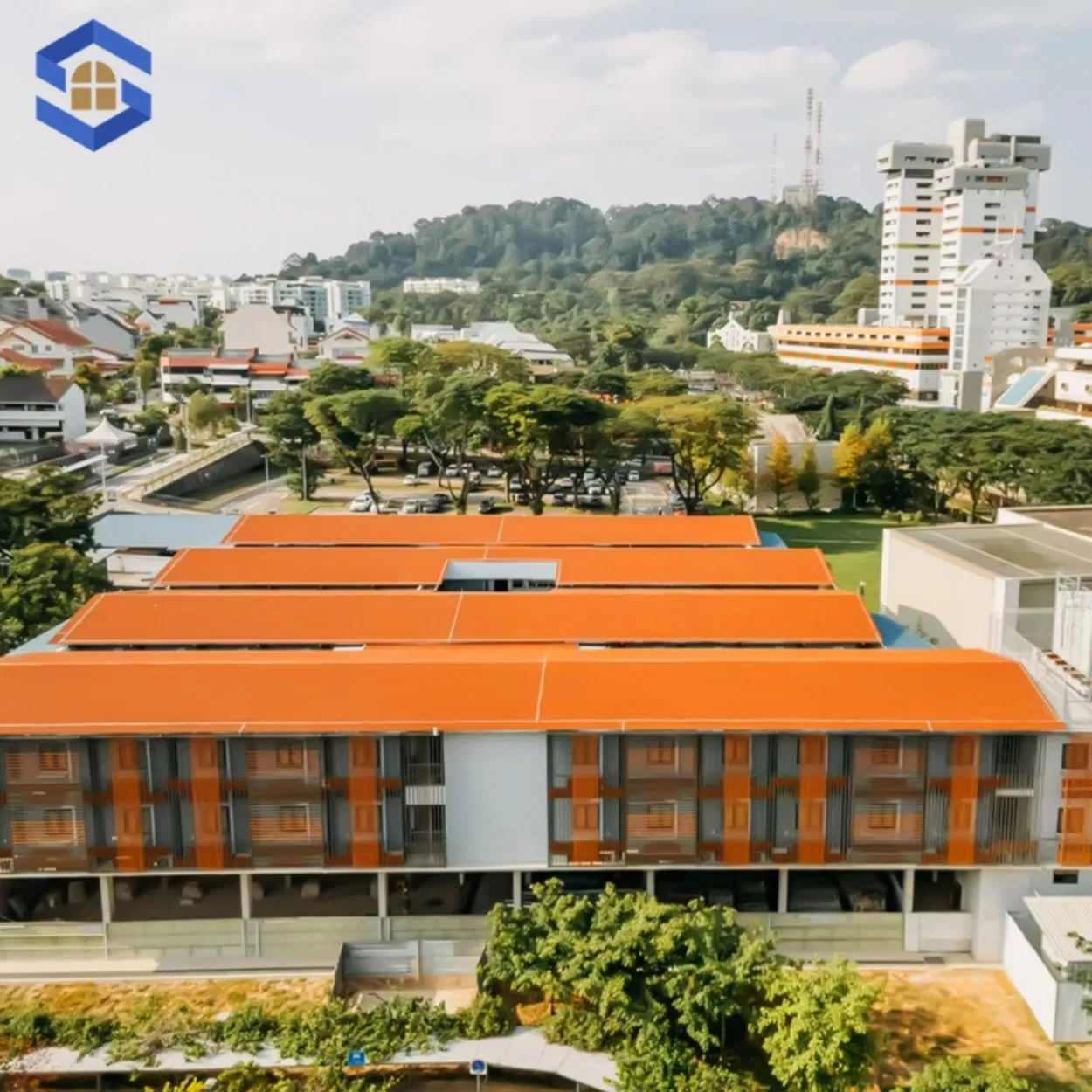

1. Modular and Standardized Design: Main structure uses custom modular units. Dimensions are standardized. Multi-story buildings can be constructed with flexible vertical/horizontal splicing.
2. Robust and Durable Structure: Made of Q235B steel with a fully welded frame. Withstands wind forces up to 10-12 levels and seismic forces of 6-8 levels. Corrosion-resistant design.

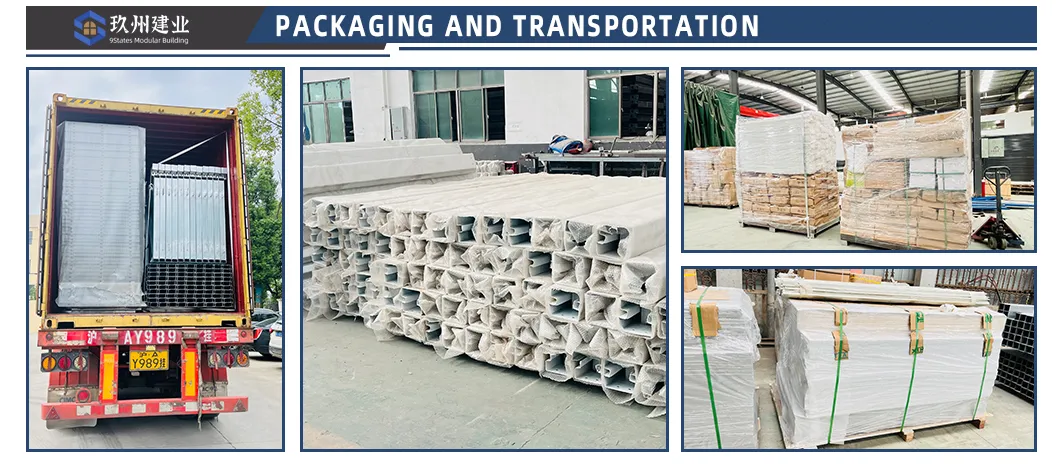

3. High Mobility: Integrated steel unit, transportable as a whole by forklift or trailer without disassembly.

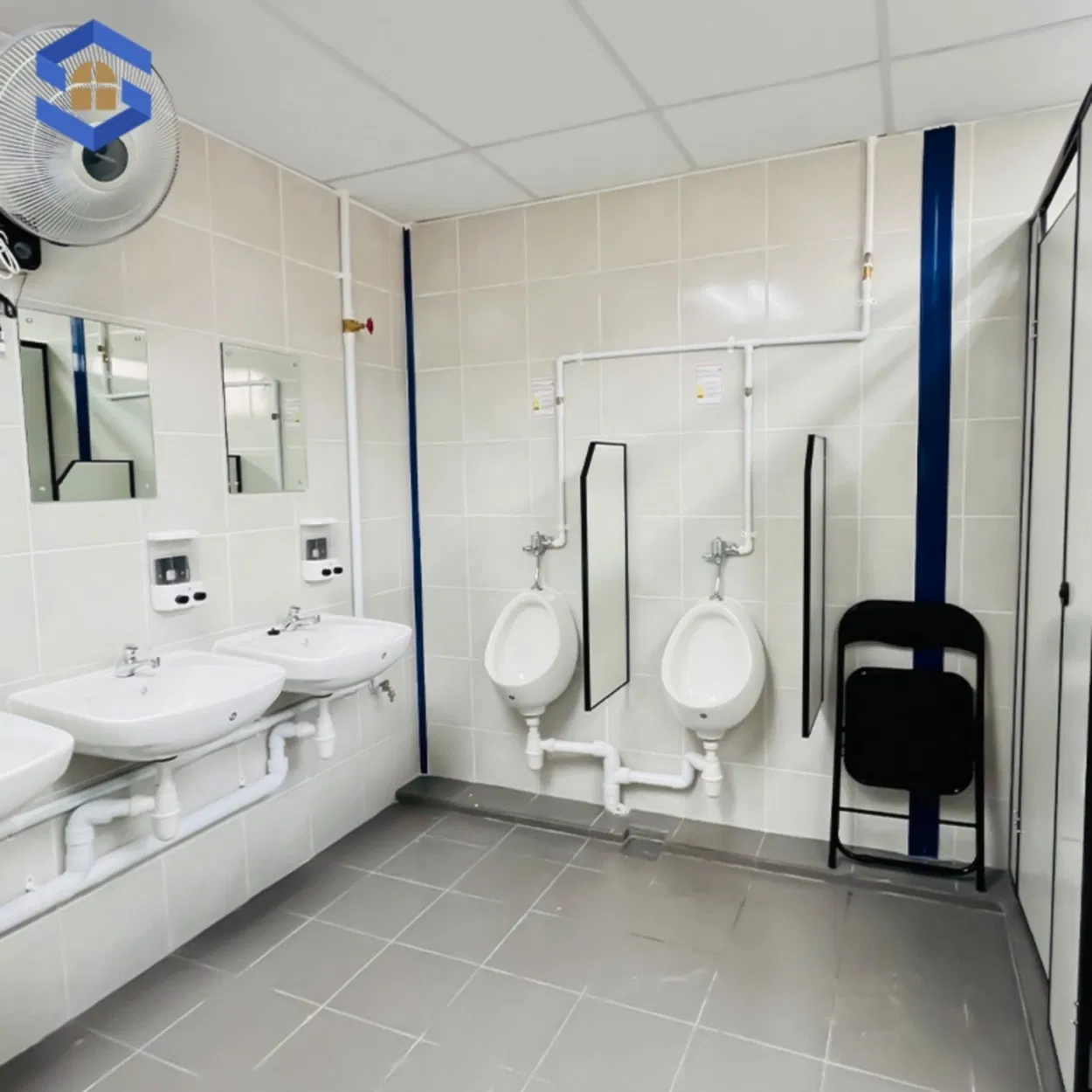

4. High Degree of Customization: Interior modifications available for plumbing, electrical, kitchen, and bathroom facilities. Custom thermal insulation and exterior decorative panels.

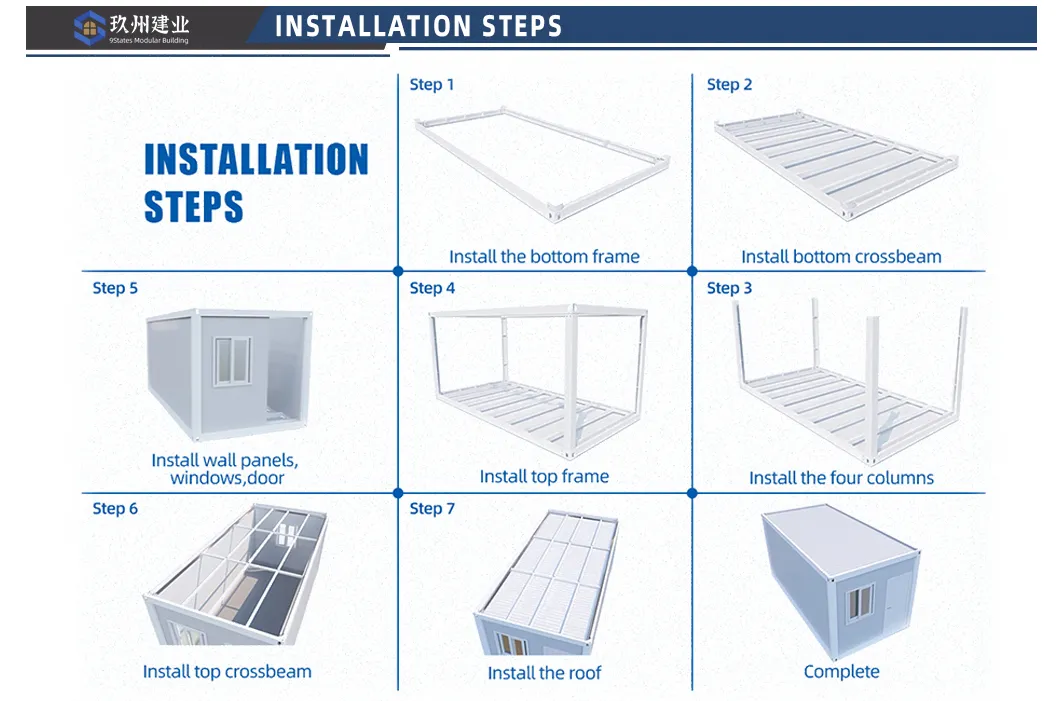

5. Short Construction Period: Factory prefabrication allows for quick on-site splicing. A 20-foot unit can be ready in 7-15 days. Three people can install it in 3 hours.
1. Residential Function: Complete living system including bedroom, kitchen, and bathroom facilities for long-term residence.

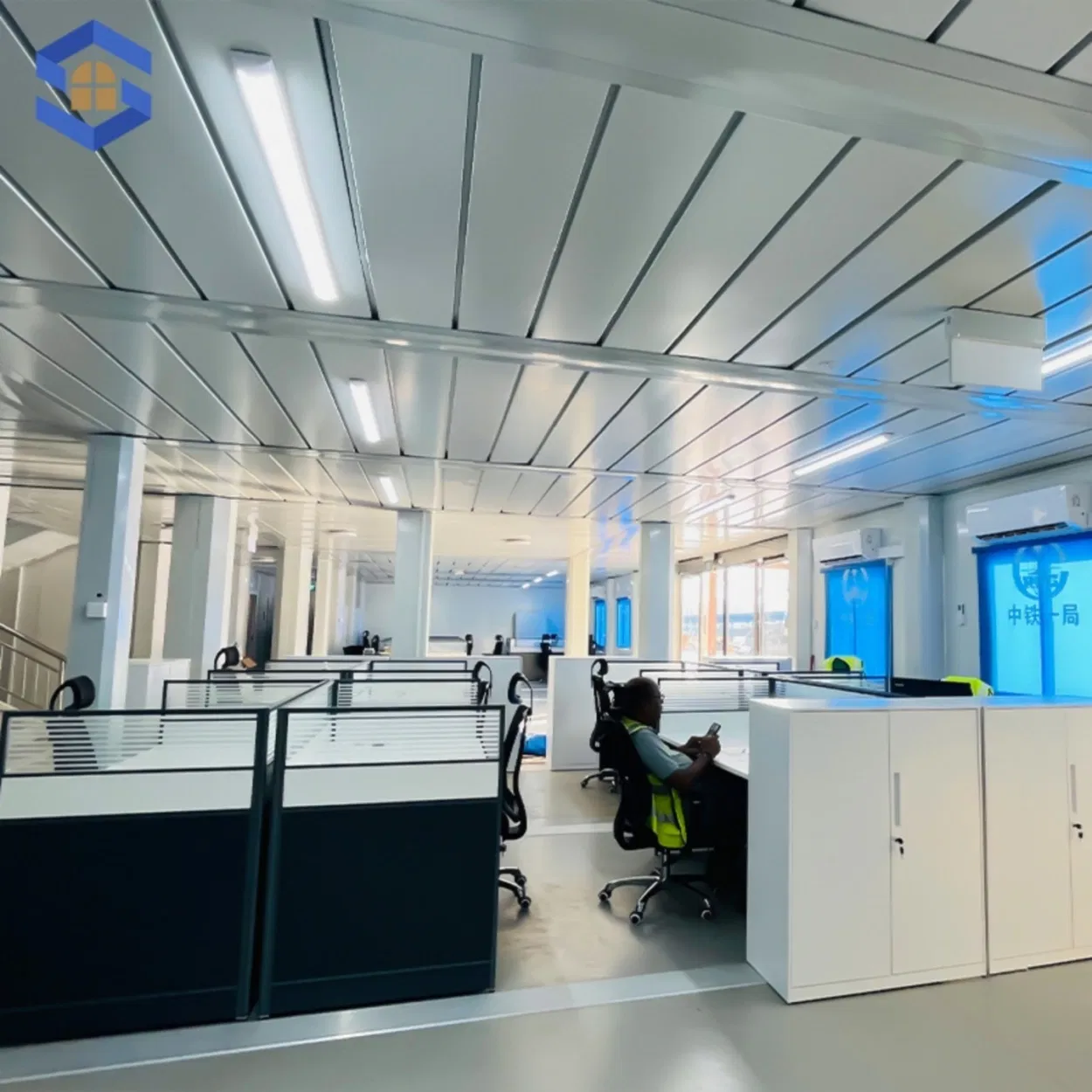

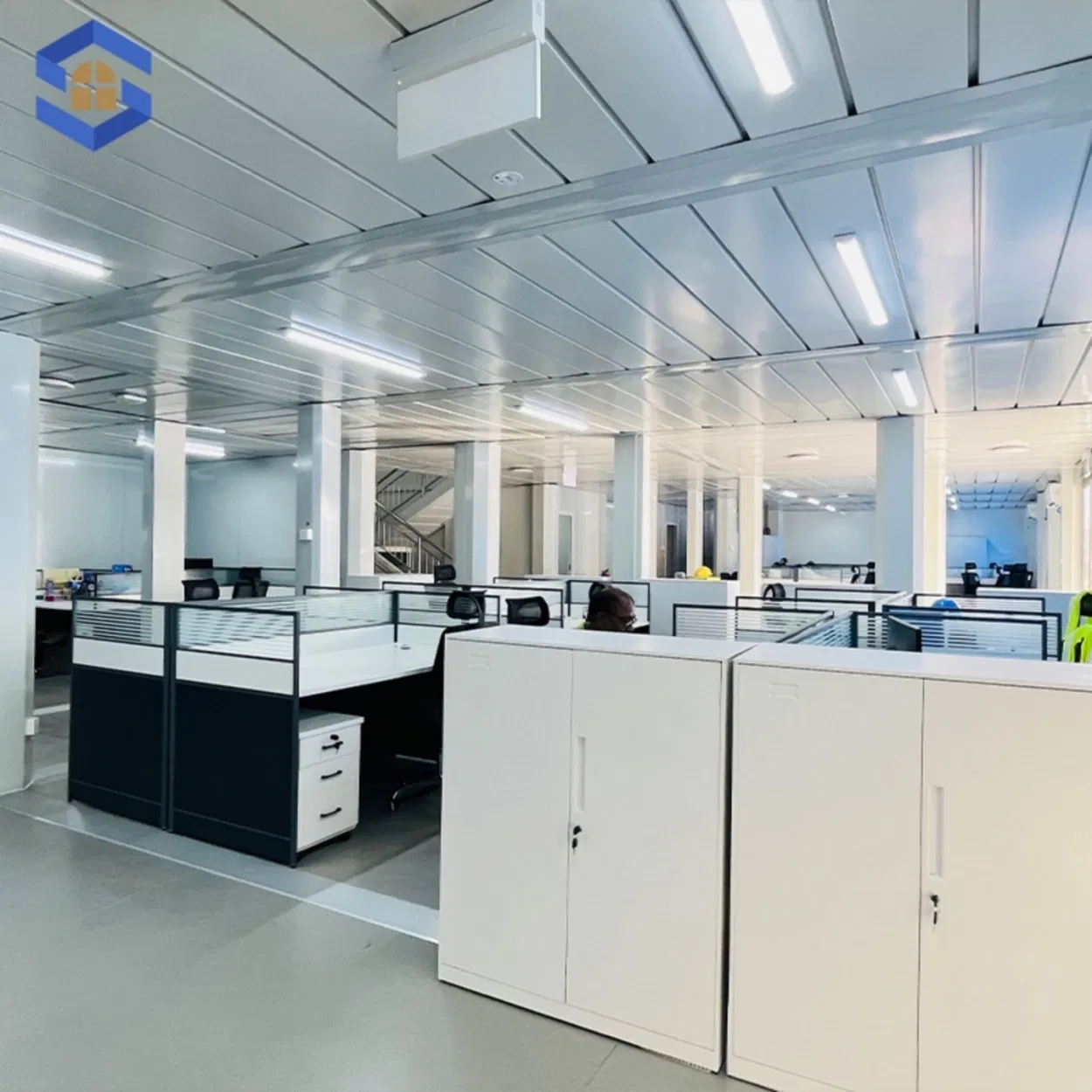

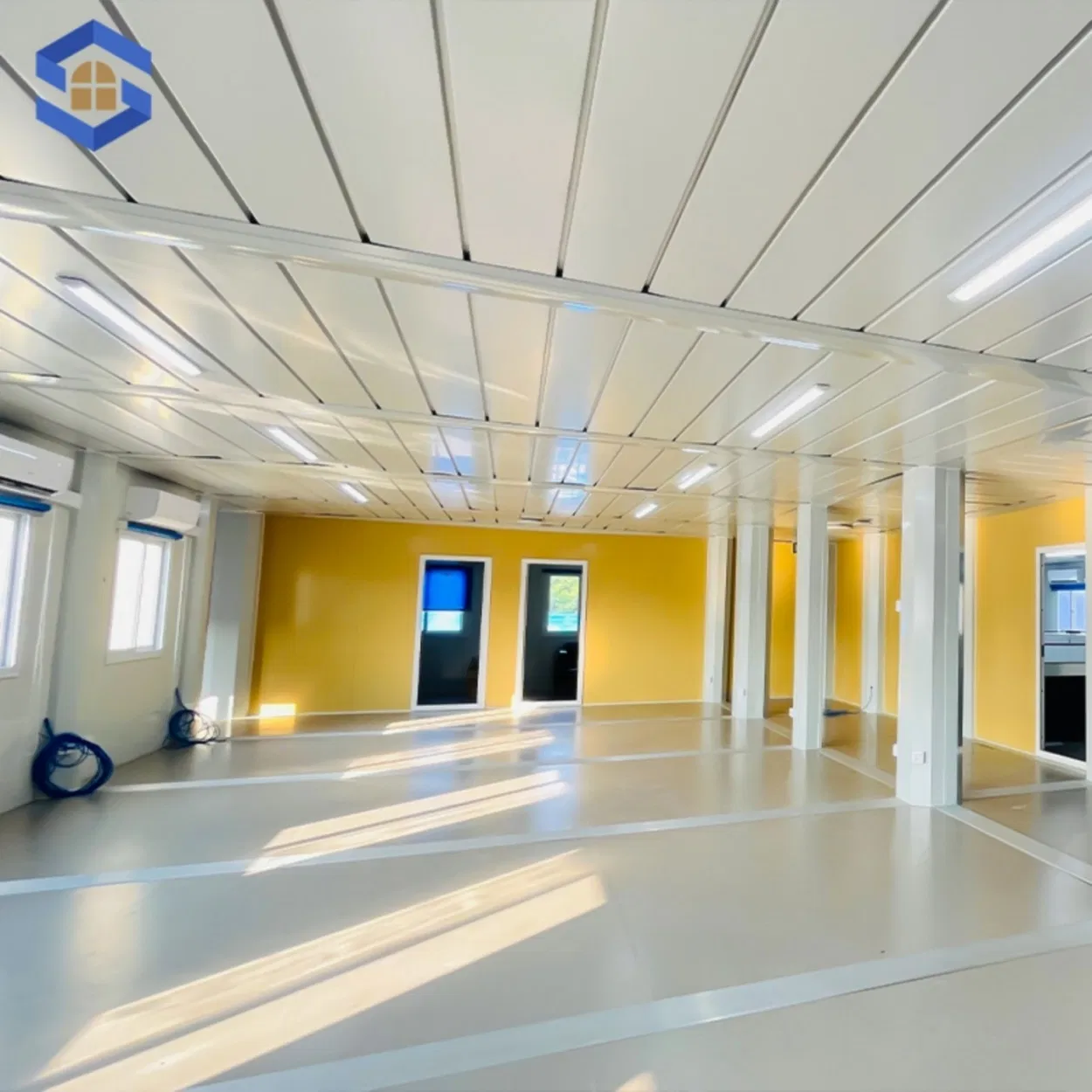

2. Office Function: Open-plan or partitioned layouts for manager's offices or meeting rooms, equipped with power and network interfaces.
3. Commercial Service Function: Transformable into convenience stores, coffee shops, or ticket booths with display windows.
4. Public Supporting Functions: Ideal for guard booths, rest rooms, medical stations, or express delivery stations.
5. Emergency Response Function: Rapid deployment for disaster recovery housing, isolation points, or temporary medical stations.

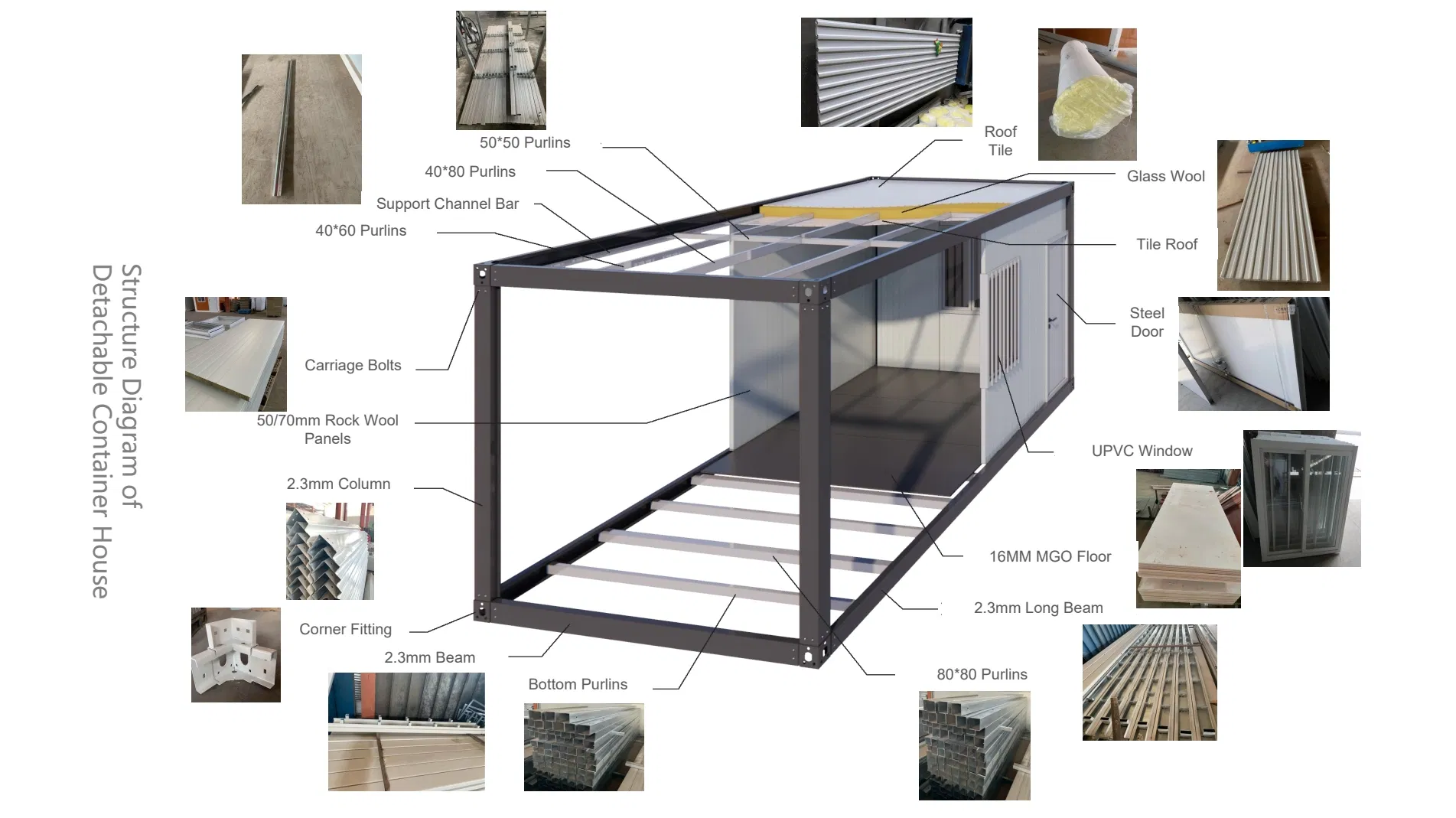

| Component | Details | |
|---|---|---|
| Size | 5950*3000*2800mm (L*W*H) | |
| Wall panel | 0.3mm color steel 50mm rock wool sandwich panel | |
| Door | Steel door, W840mm x H2035mm, 0.5mm panel, fireproof | |
| Window | Upvc sliding window, W1120mm x H1100mm x 2pcs; Double glass with screen | |
| Roof | 0.4mm Thickness, 980 Type Color Steel pressure type tile | |
| Floor | 18mm Grade cement fiberboard + 1.6mm PVC floor leather | |
| Frame | Ground main beam: 150mm (2.5mm thick); Column: 210*150mm (2.5mm thick); Roof main beam: 160mm (2.5mm thick) | |
| Technical parameters | Temperature | -20°C to 50°C |
| Wind load | 11 grade | |
| Earthquake grade | 7 grade | |
